CV0850 Ground Station
and ToF Configuration

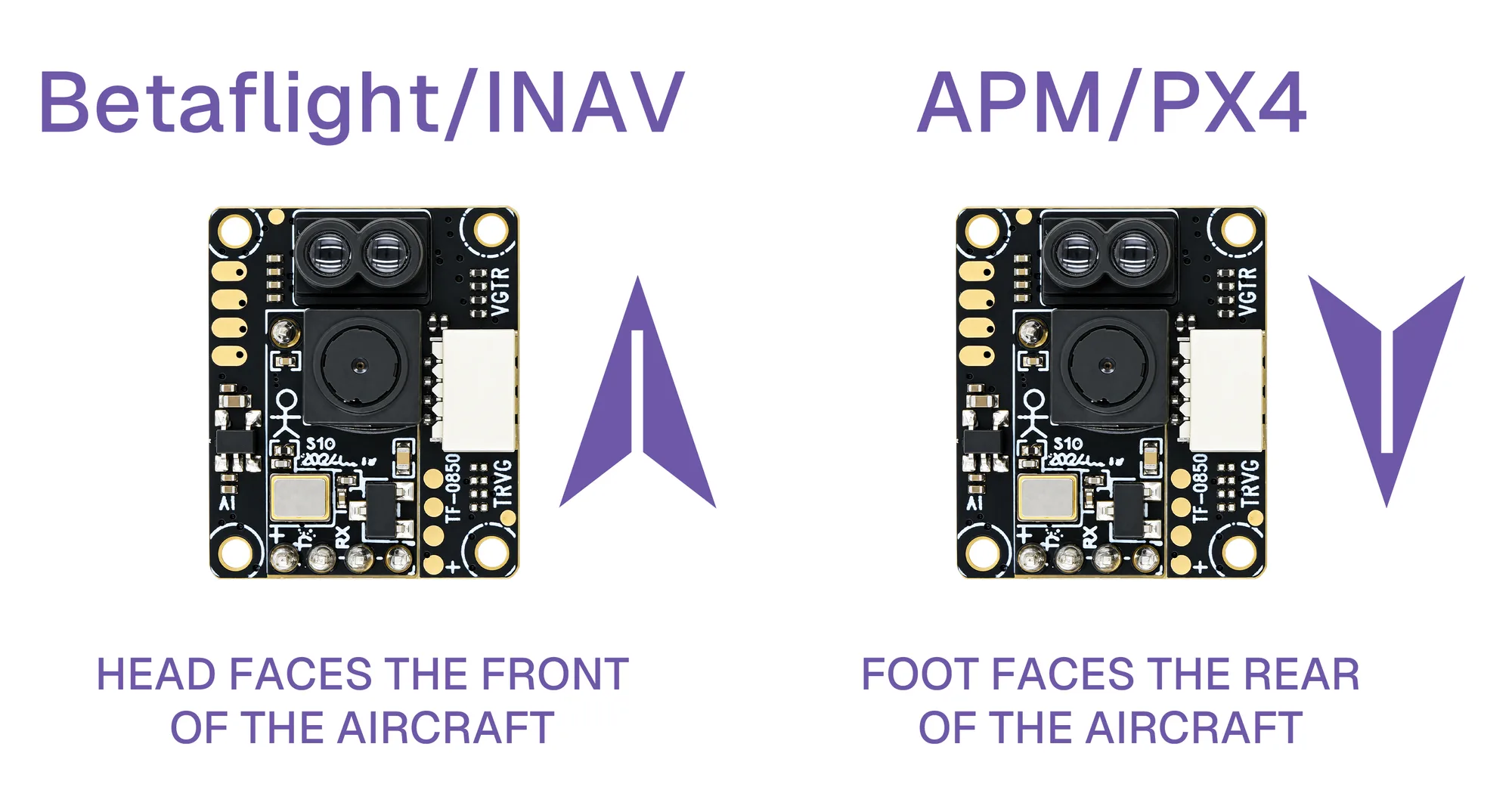

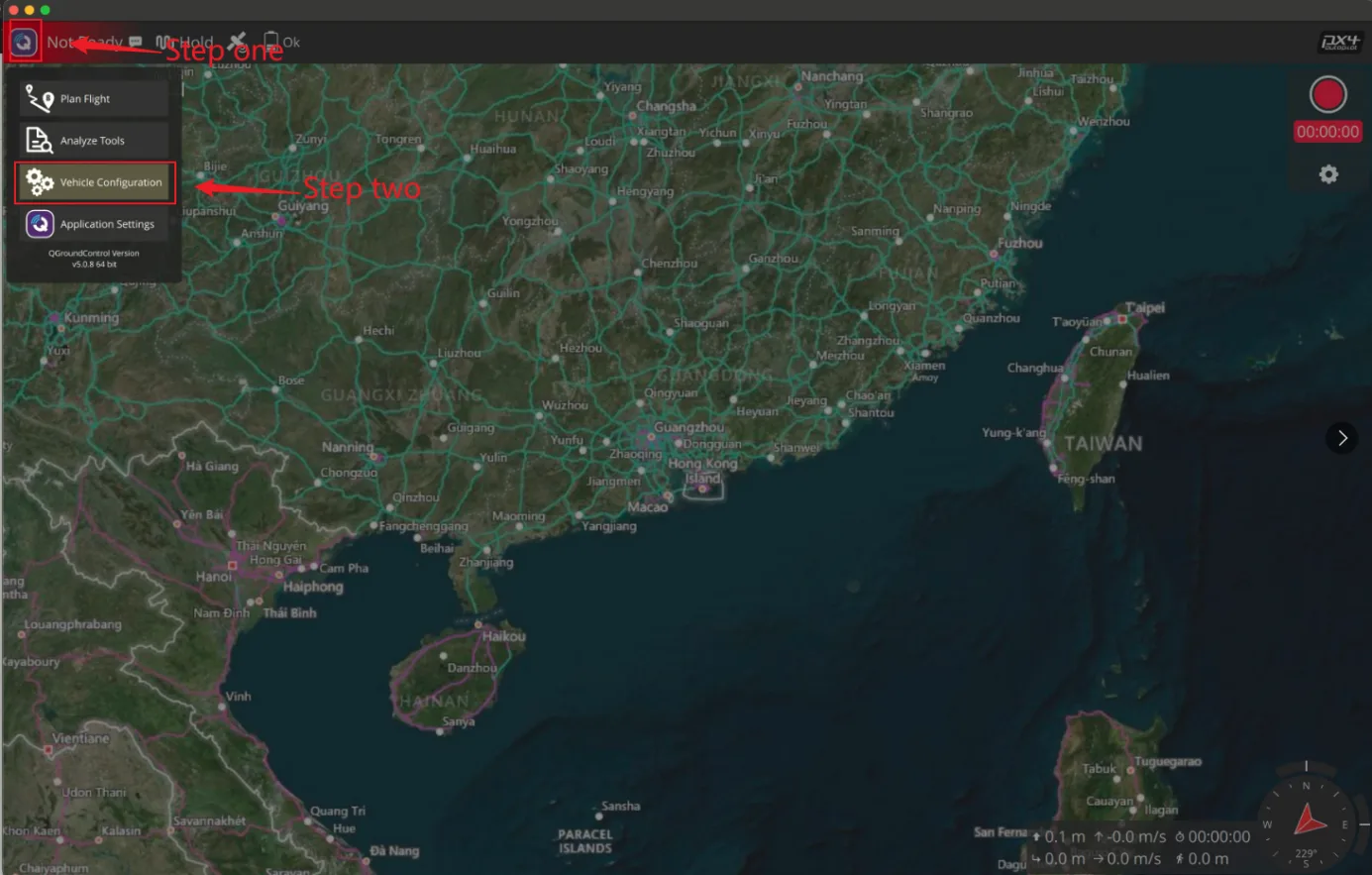

Open the tool and select Vehicle Configuration;

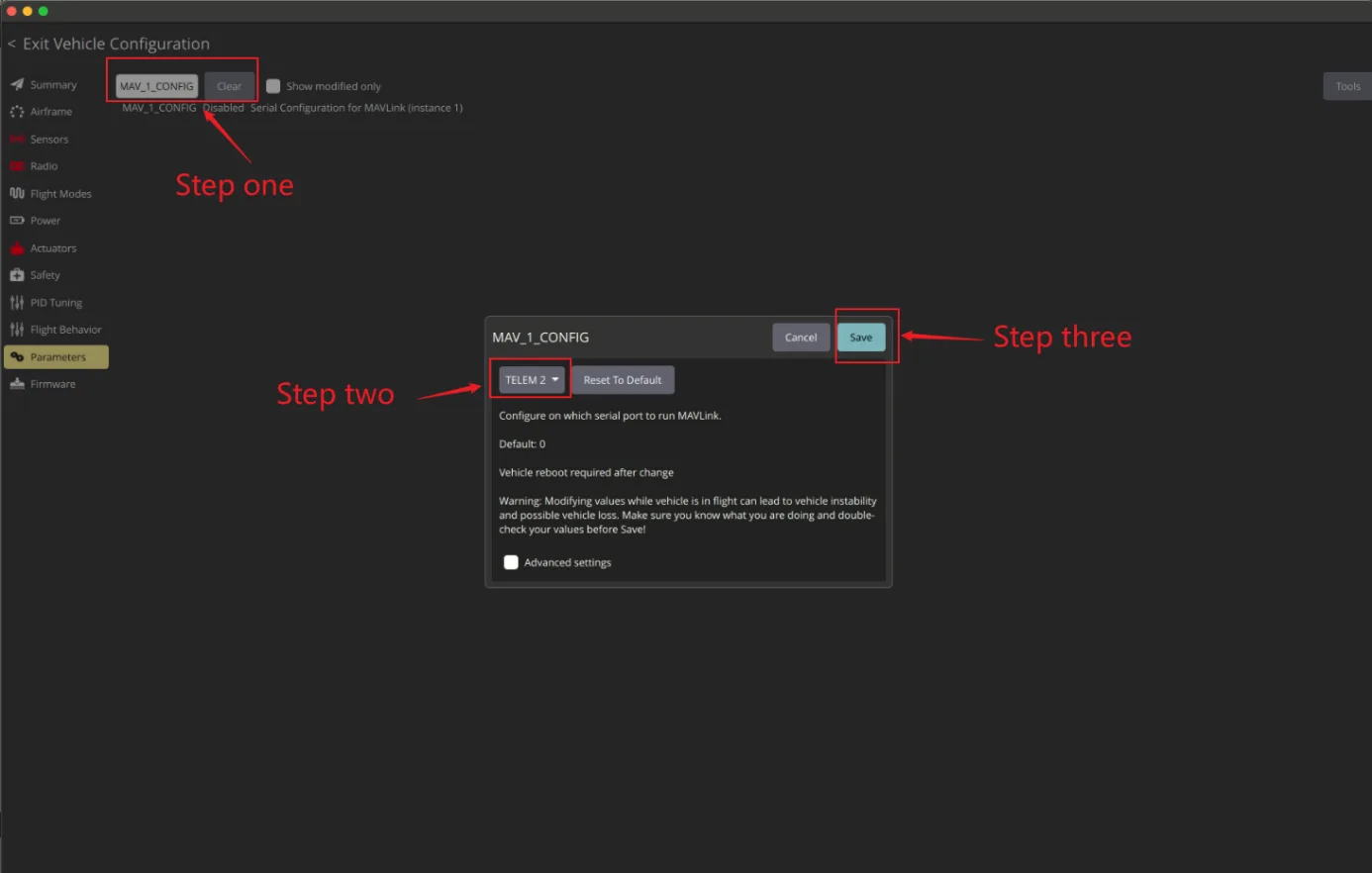

Set MAV_1_CONFIG to TELEM 2 and save;

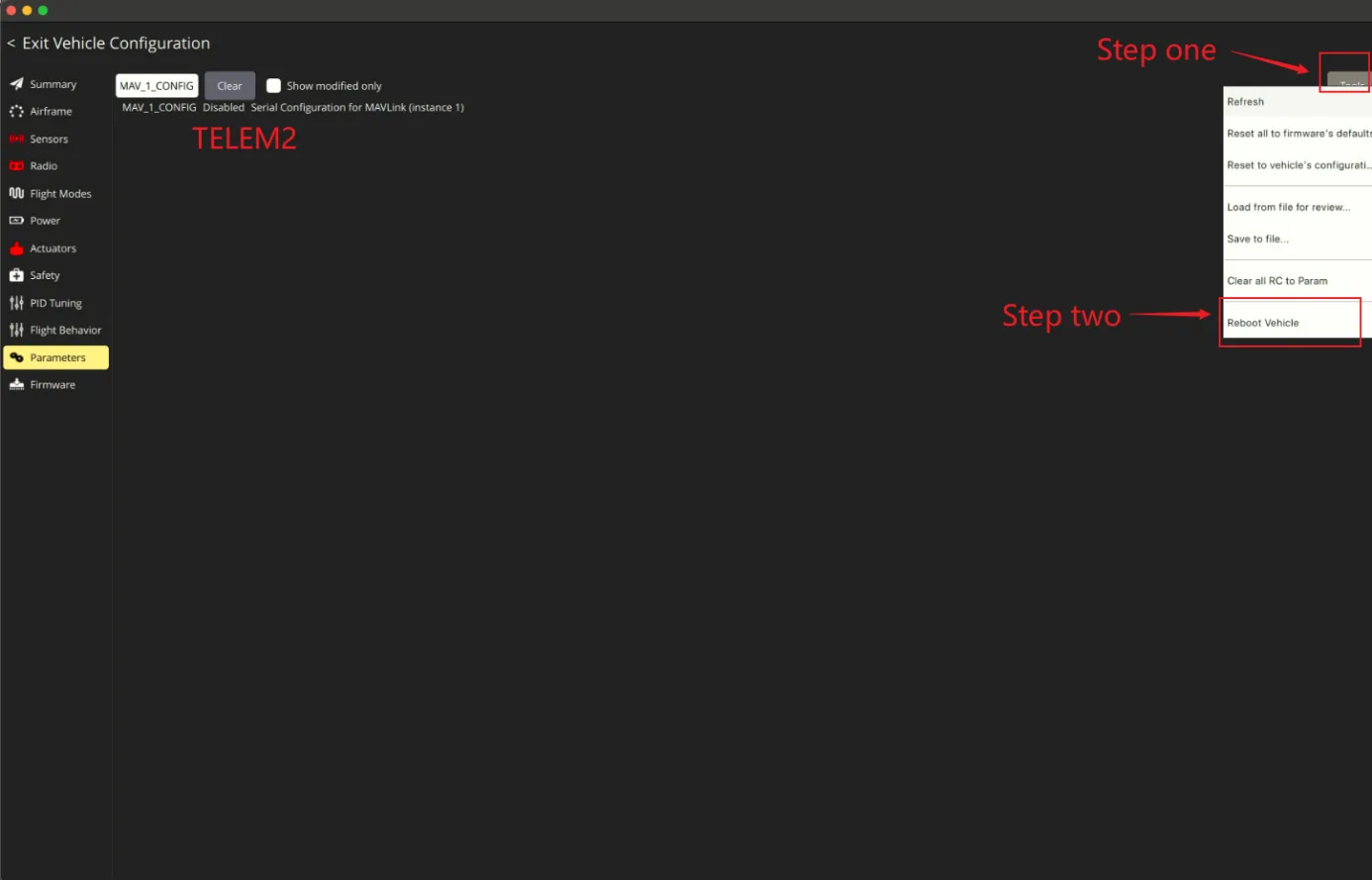

Click “Tools,” then click “Reboot Vehicle”;

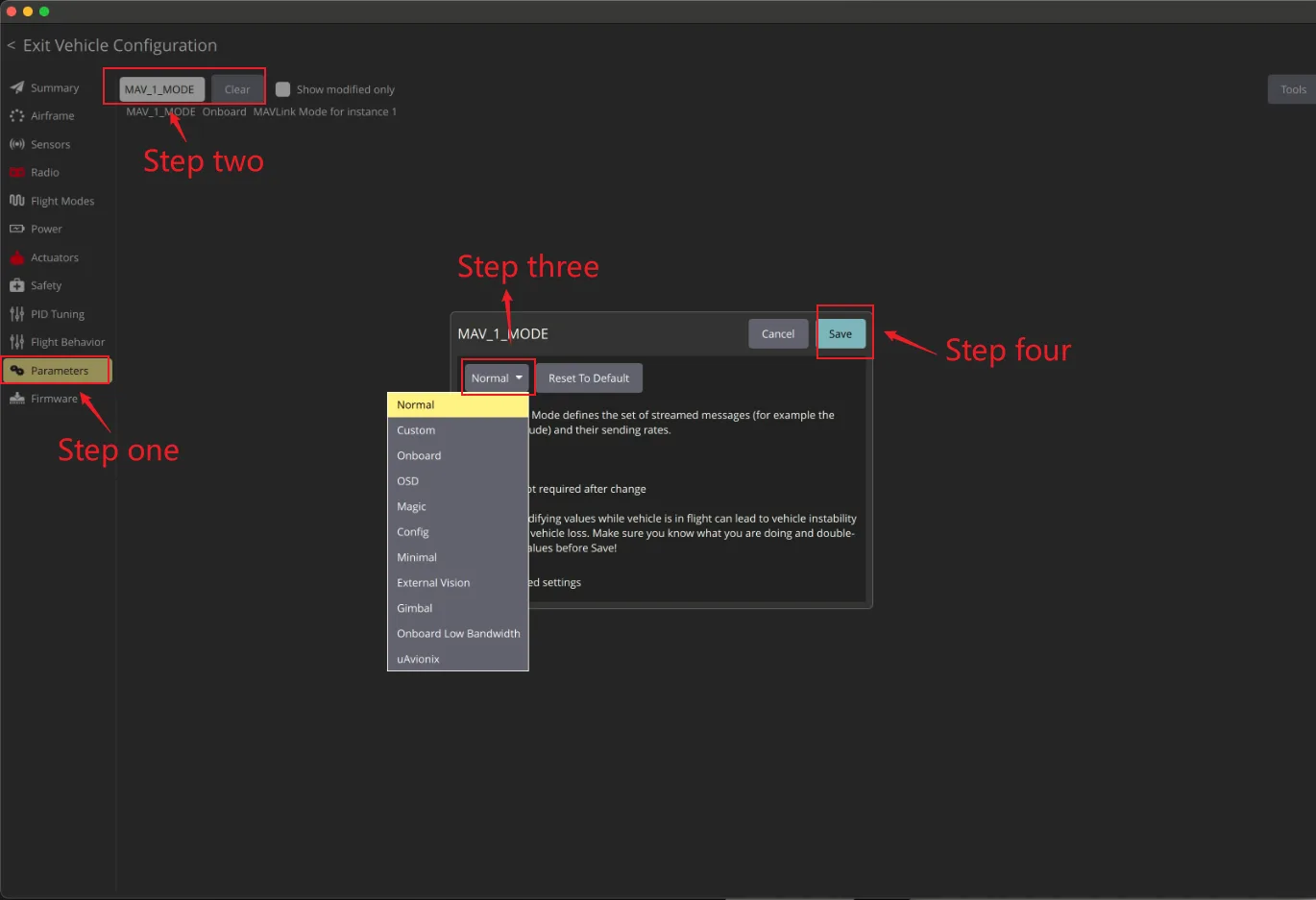

Set MAV_1_MODE to Normal and save;

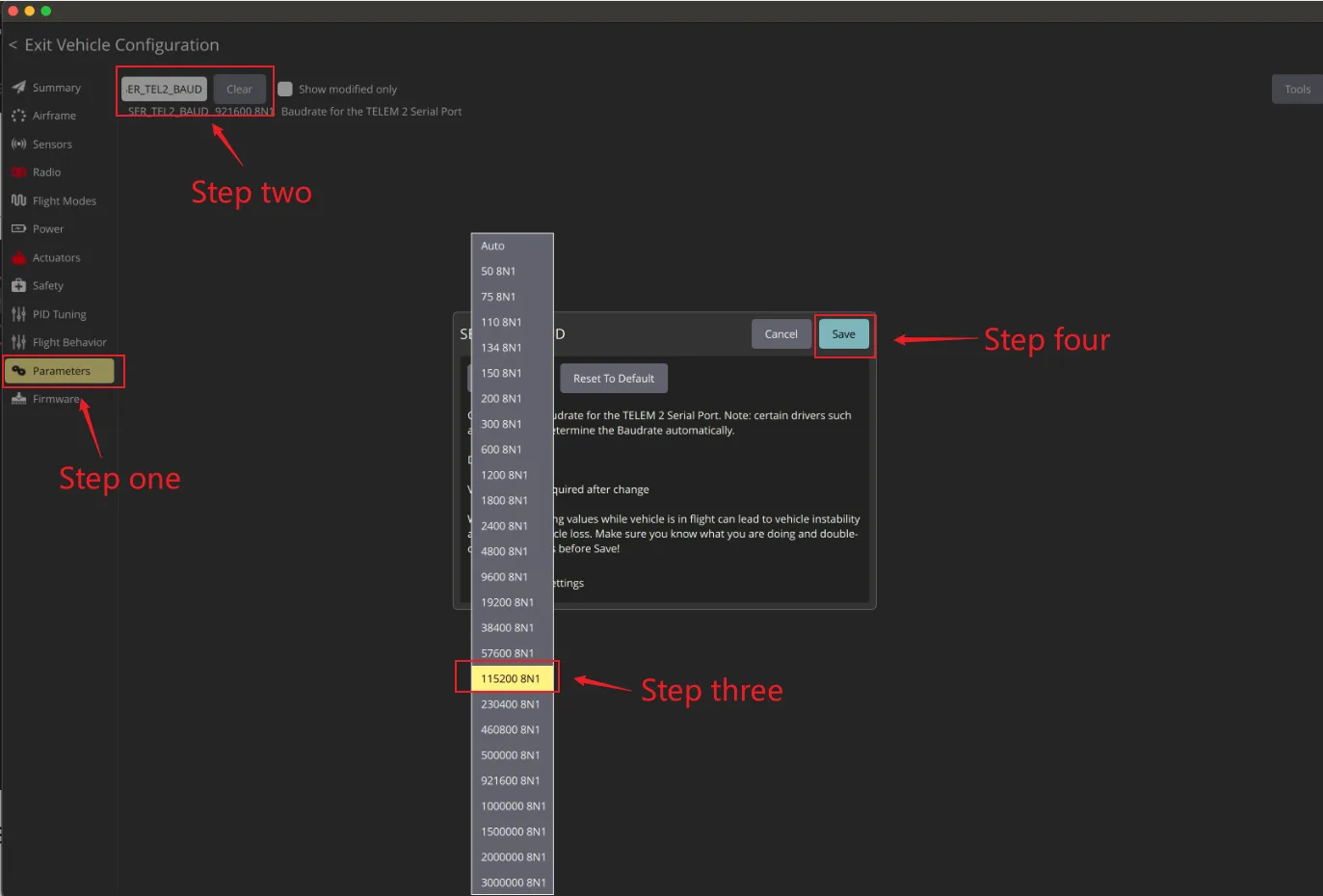

Set SER_TEL2_BAUD to 115200 8N1 and save it;

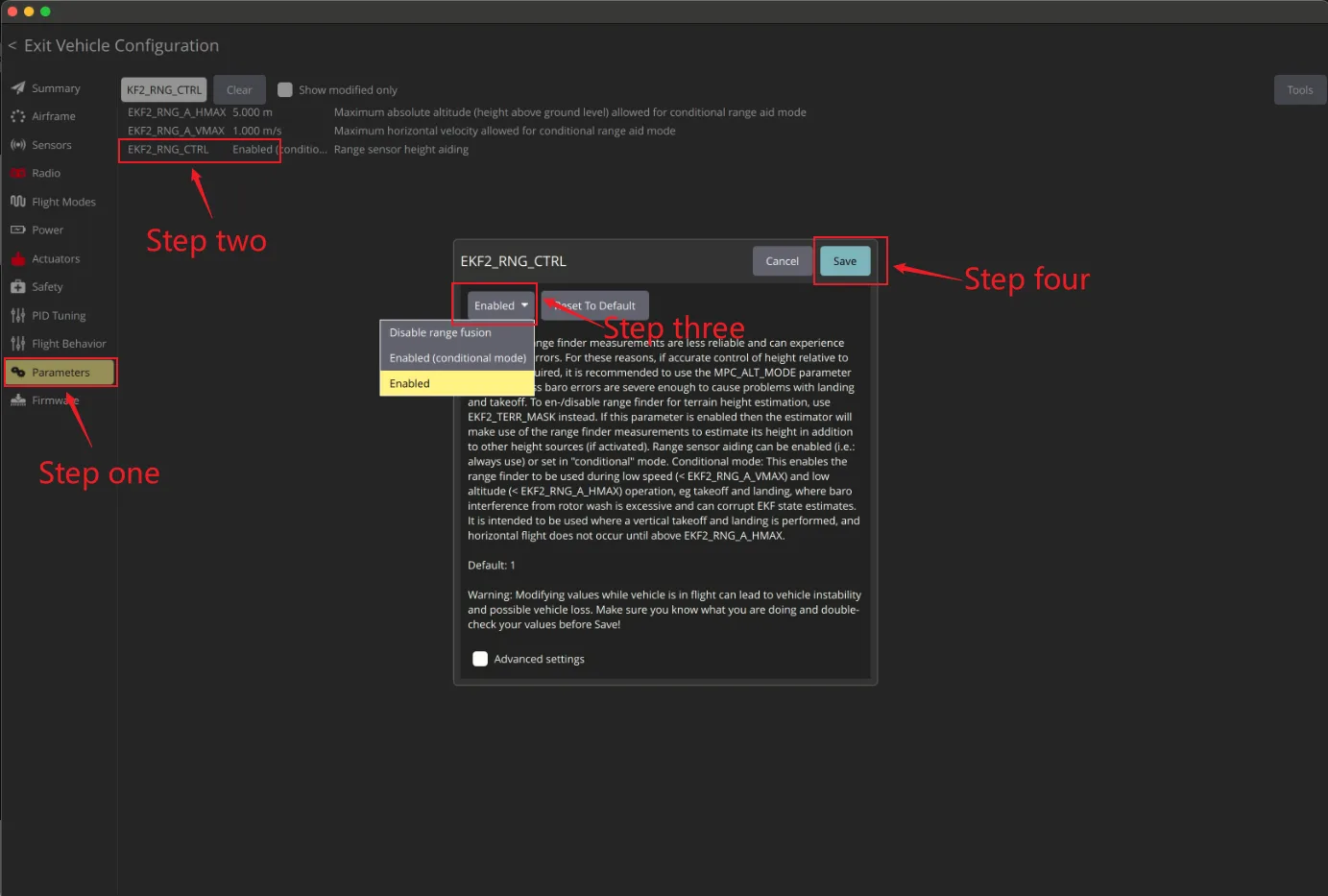

Optional height-fusion setup: leave EKF2_RNG_CTRL unchanged for the communication check in step 8. The illustrated Enabled setting enables continuous range fusion; choose it only after assessing the installed PX4 version, mounting, reliable sensor range and flight conditions. This is not a required step for receiving sensor messages.

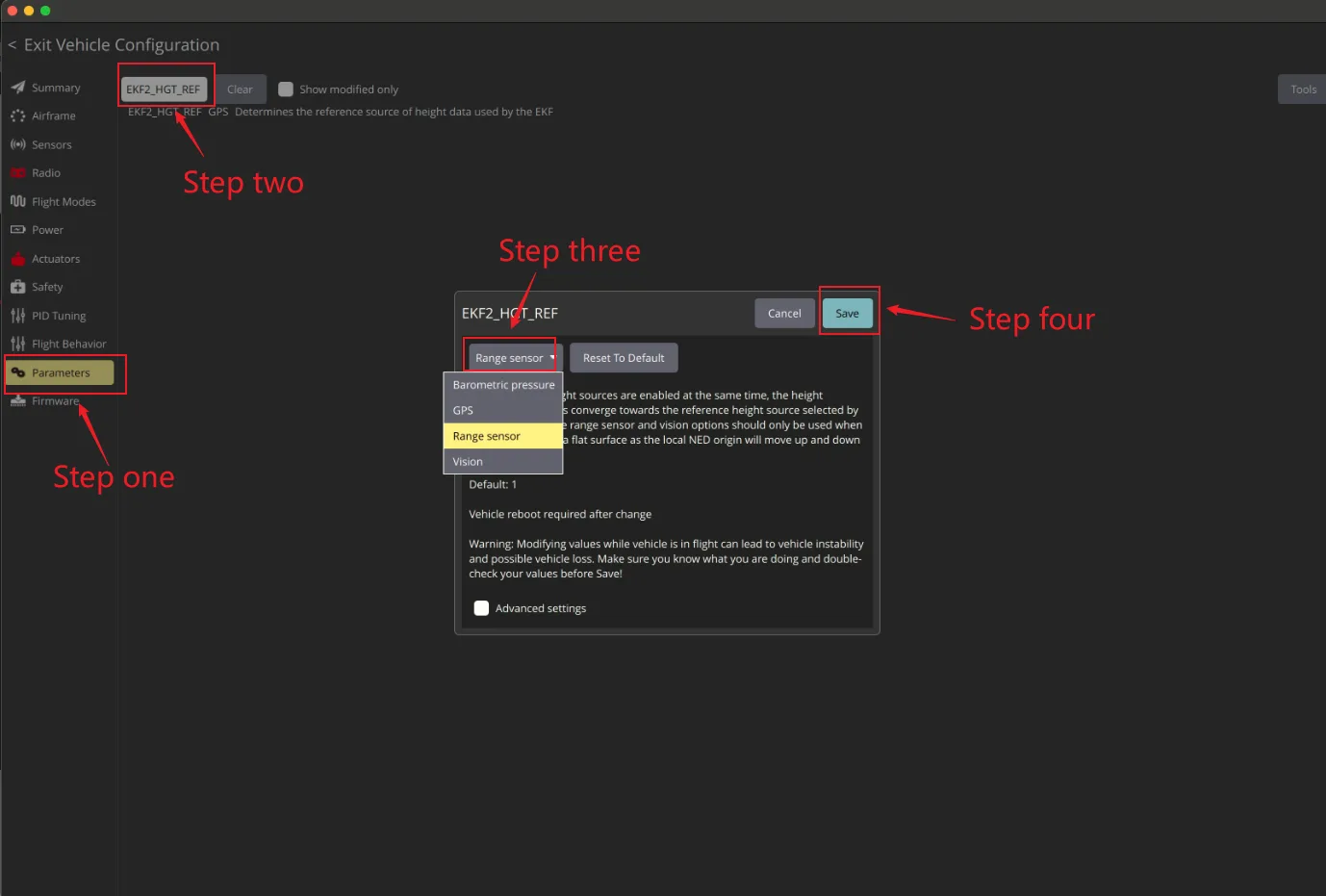

Optional height reference: EKF2_HGT_REF = Range sensor is intended only for operation over a flat surface within the reliable range of a downward-facing sensor. Terrain changes move the local height reference. Keep the existing height reference for the communication check; do not copy this setting as a general flight configuration.

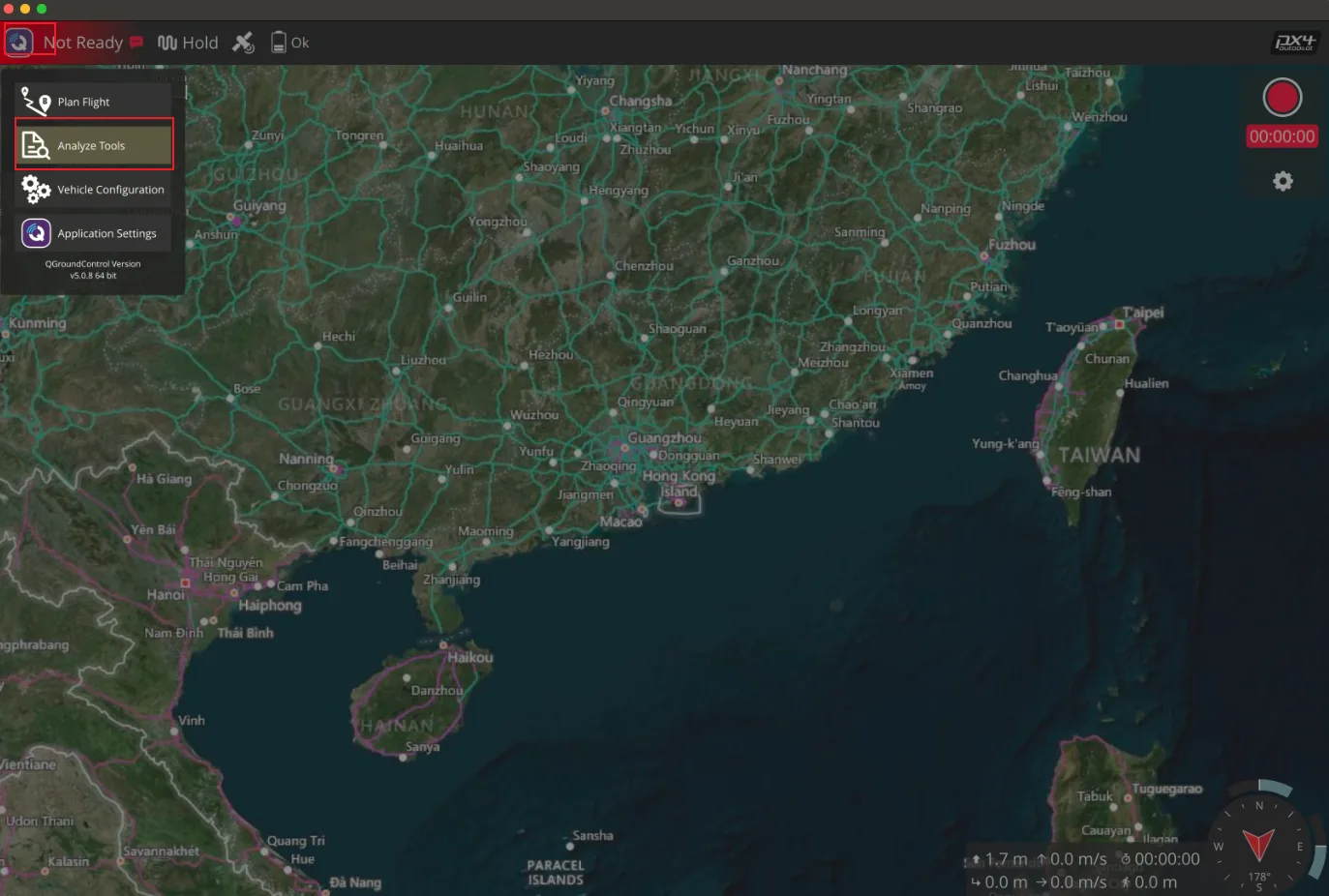

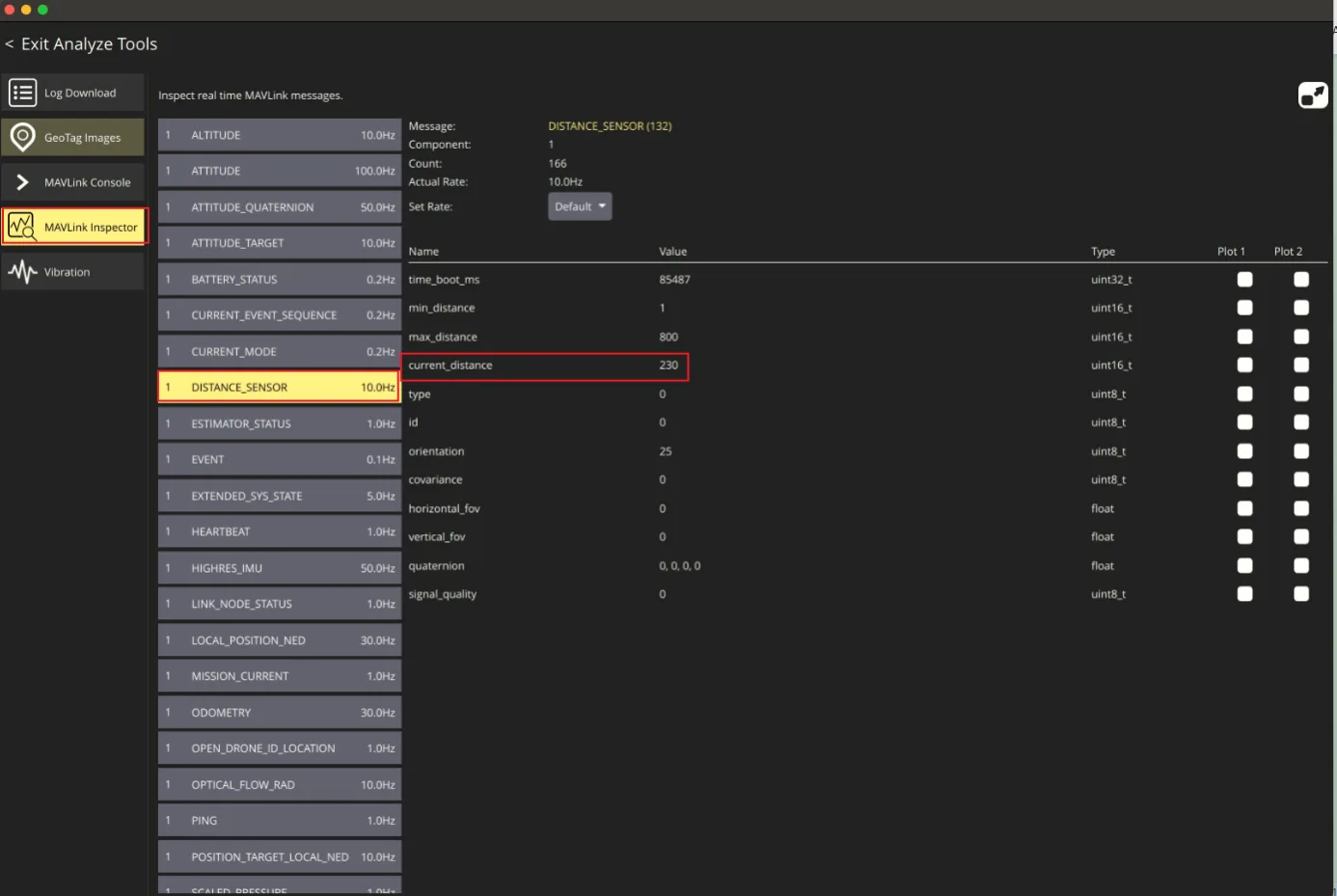

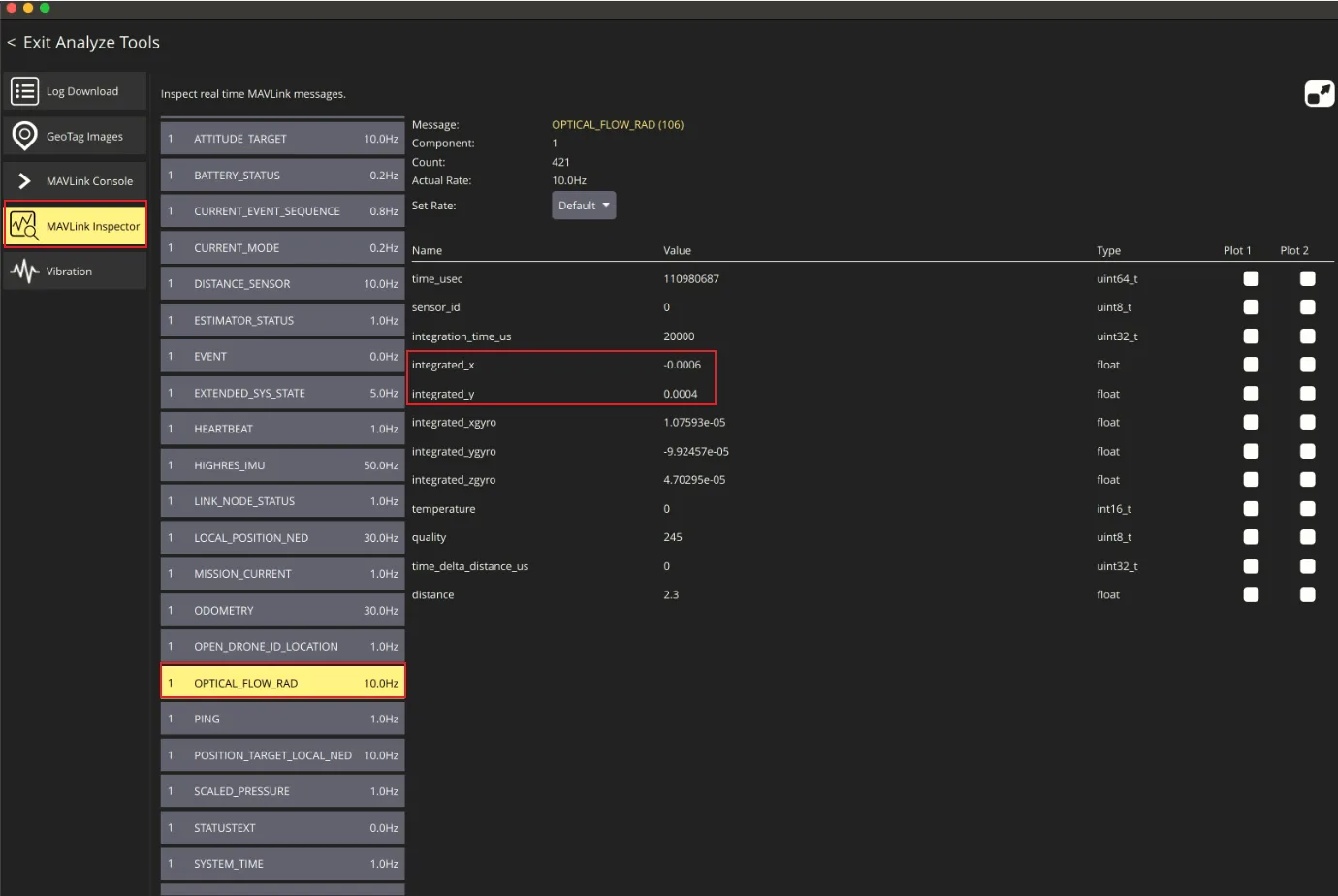

After the configuration is completed, restart the flight controller. You should be able to see the DISTANCE_SENSOR and OPTICAL_FLOW_RAD messages in the MAVLink Inspector page of QGC. It's fine as long as there is a change in the values. Note that the messages displayed on the QGC are sent by the flight control. The message frequency is not the same as the data frequency of the sensor. This frequency is determined by the Settings of the flight control and the speed of the data link, and is mainly used for observation. The number of the message frequency is not important.

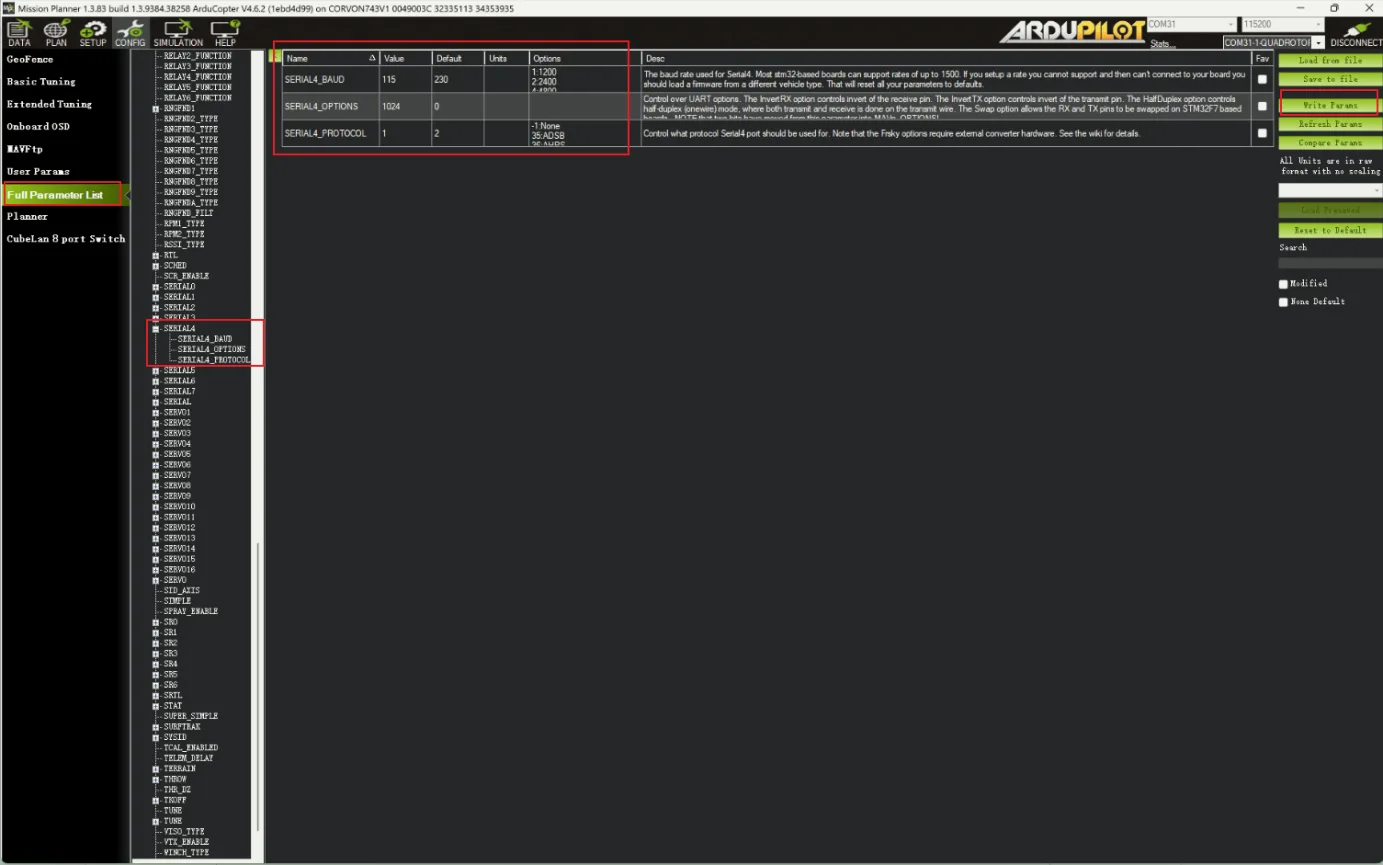

In Mission Planner, set the corresponding serial port baud rate SERIAL4_BAUD to 115(115200), and set the options parameter according to the firmware version: for 4.7 and later, use MAVx_OPTIONS and enable bit 1 (mask 2, disable MAVLink forwarding) while preserving other bits; for 4.6 and earlier, use SERIALx_OPTIONS and enable bit 10 (mask 1024, private MAVLink channel) while preserving other bits. Then set the serial port protocol value SERIAL4_PROTOCOL to 1(Mavlink1). Click "Write Params" to save;

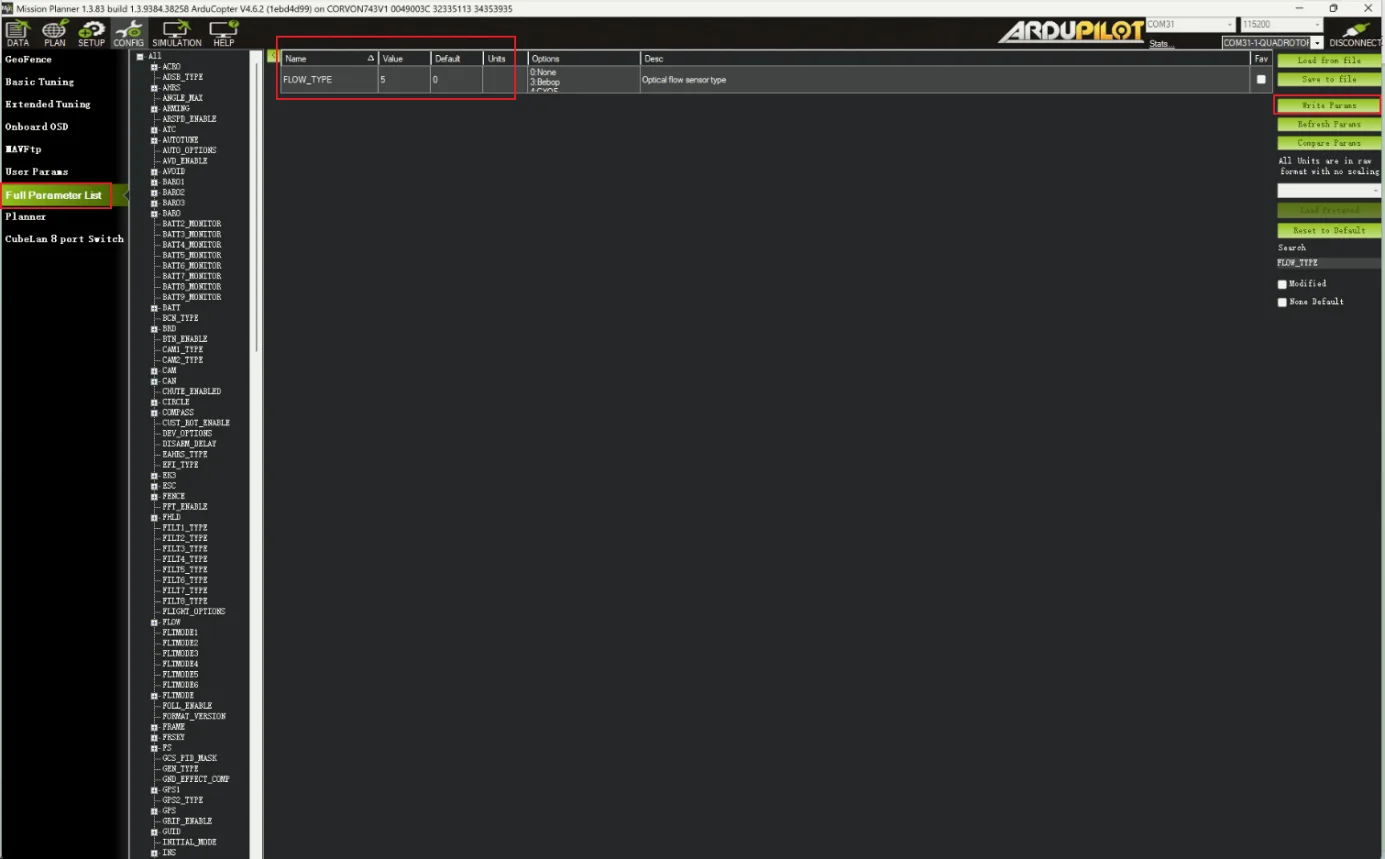

Set the optical flow FLOW_TYPE value to 5 and save it;

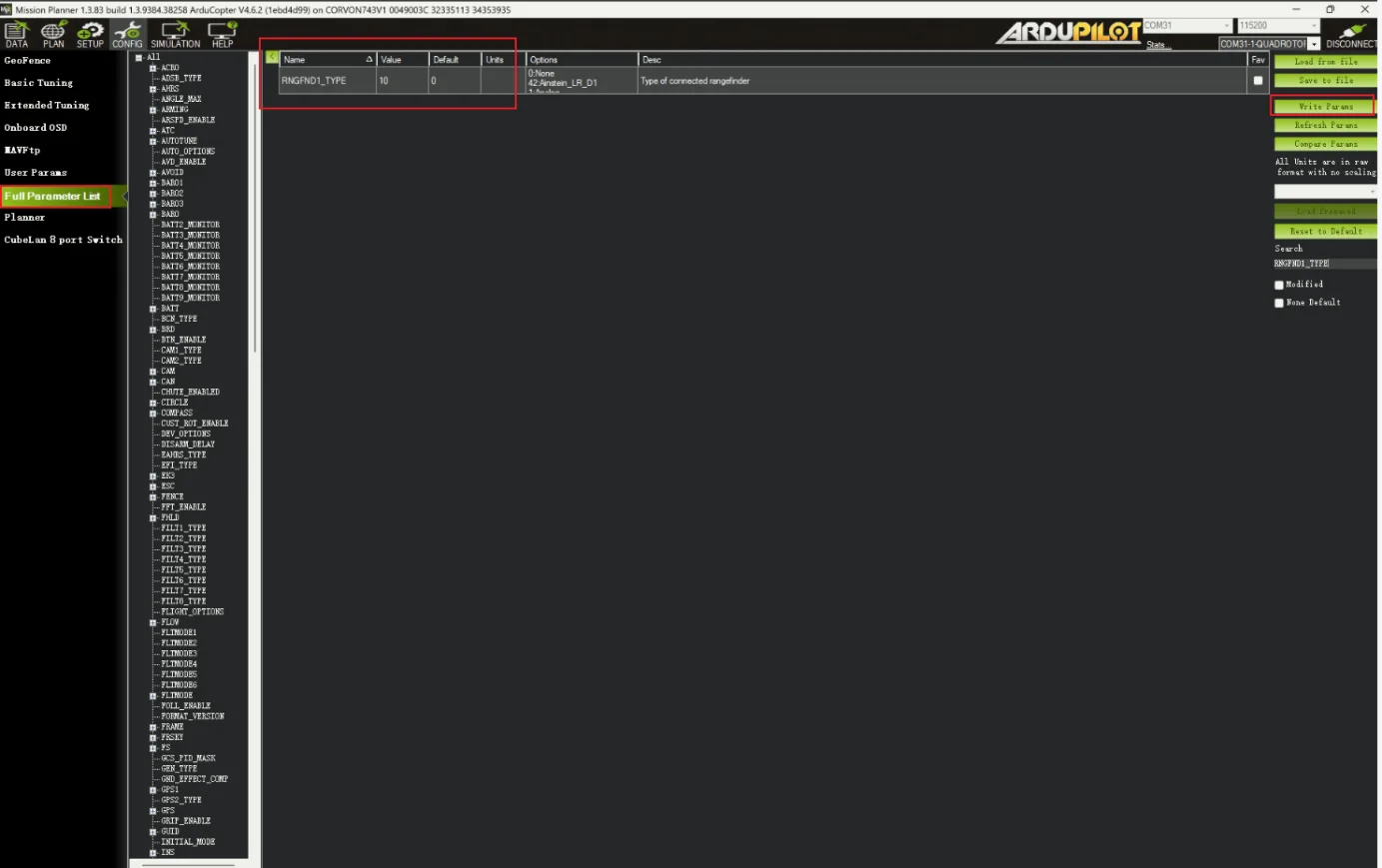

Set the RNGFND1_TYPE value to 10 and save it;

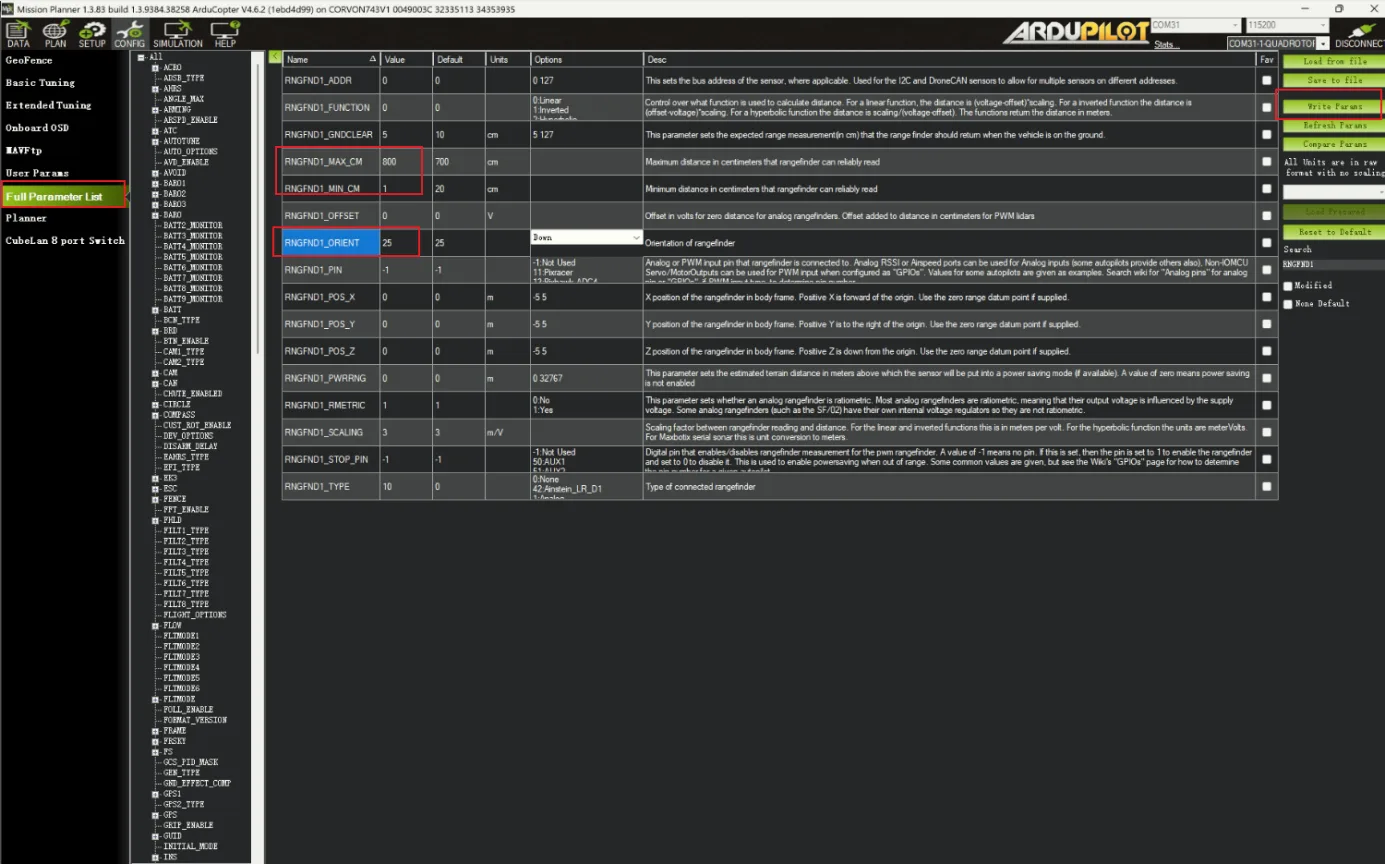

Restart the flight controller after enabling the rangefinder. For ArduPilot 4.7 and later, set RNGFND1_MAX to 8 and RNGFND1_MIN to 0.02 (metres). For 4.6 and earlier, set RNGFND1_MAX_CM to 800 and RNGFND1_MIN_CM to 2 (centimetres). Set RNGFND1_ORIENT to 25 only for a downward-facing installation. Save the settings. Screenshots show the older parameter names.

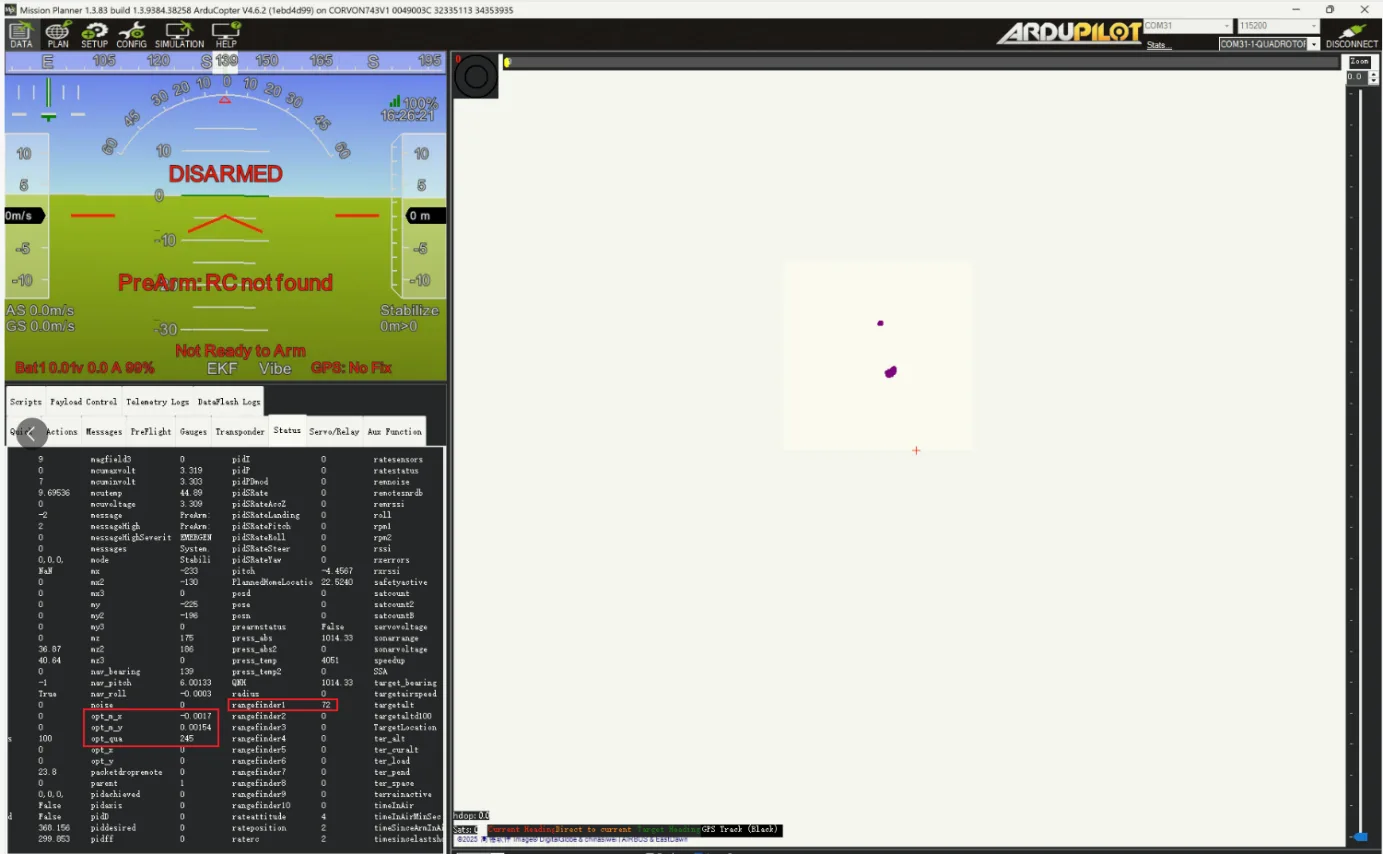

On the status page, you can see the values of rangefinder1, opt_m_x, opt_m_y, and opt_qua.

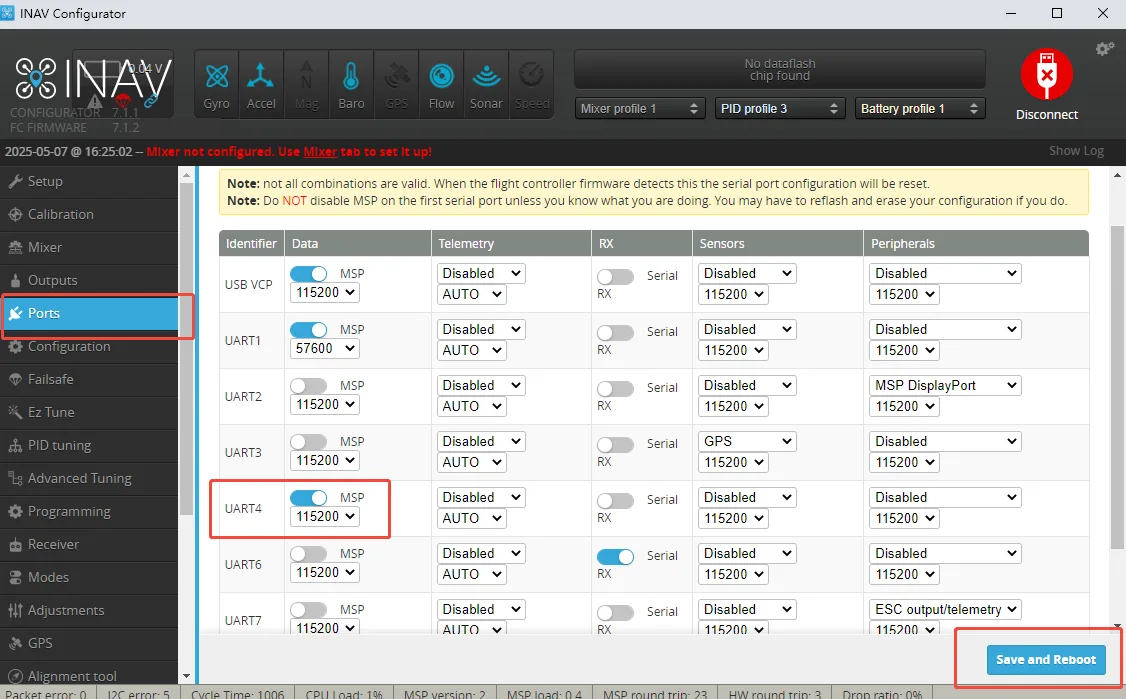

Open the Ports interface, enable the MSP function for the corresponding serial port (we are connected to UART4),Select a baud rate of 115200，save, and restart.

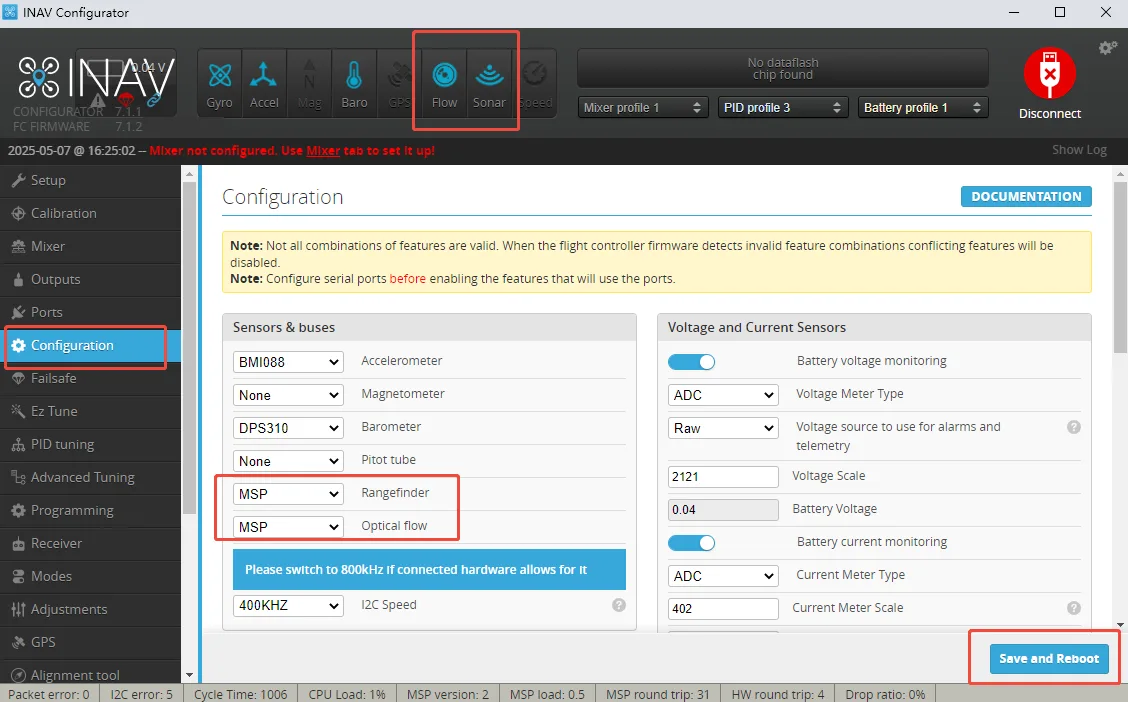

In the Configuration interface, set the Rangefinder option and the Optical flow option to MSP, save and restart. If the configuration is correct, you can see that the Sonar indicator light and the Flow indicator light on the main interface are on.

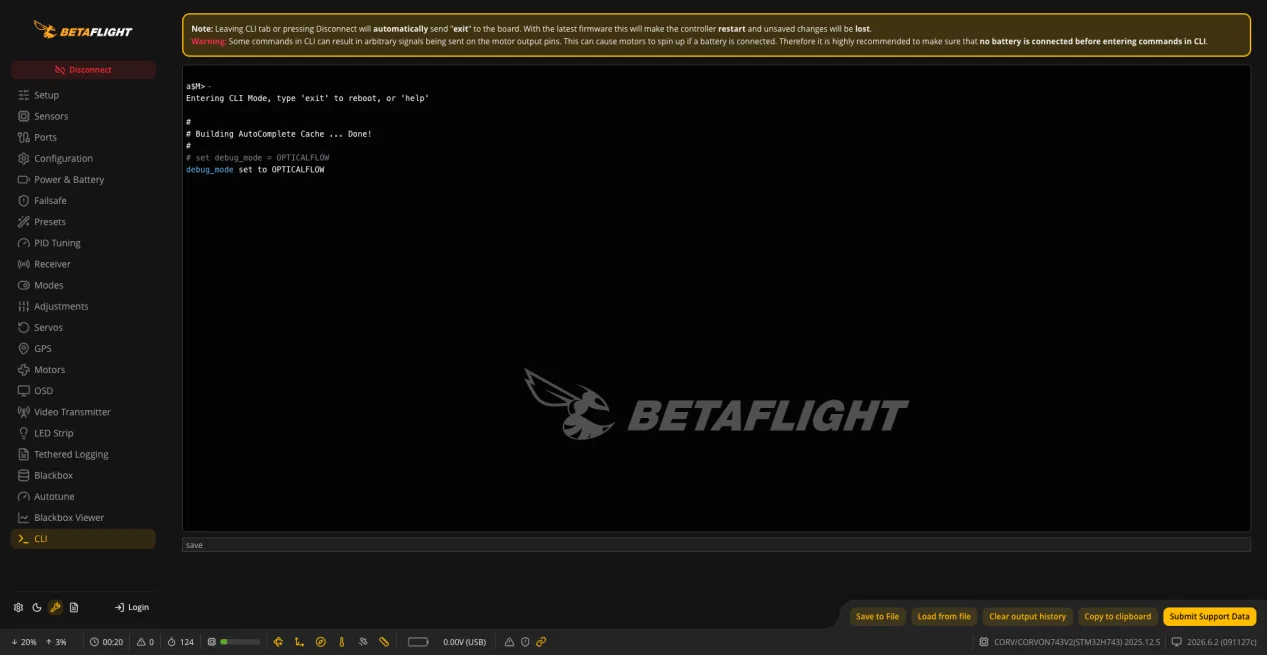

Set the Debug data to optical flow data in the CLI interface;

Entering the "save" command will save and restart.

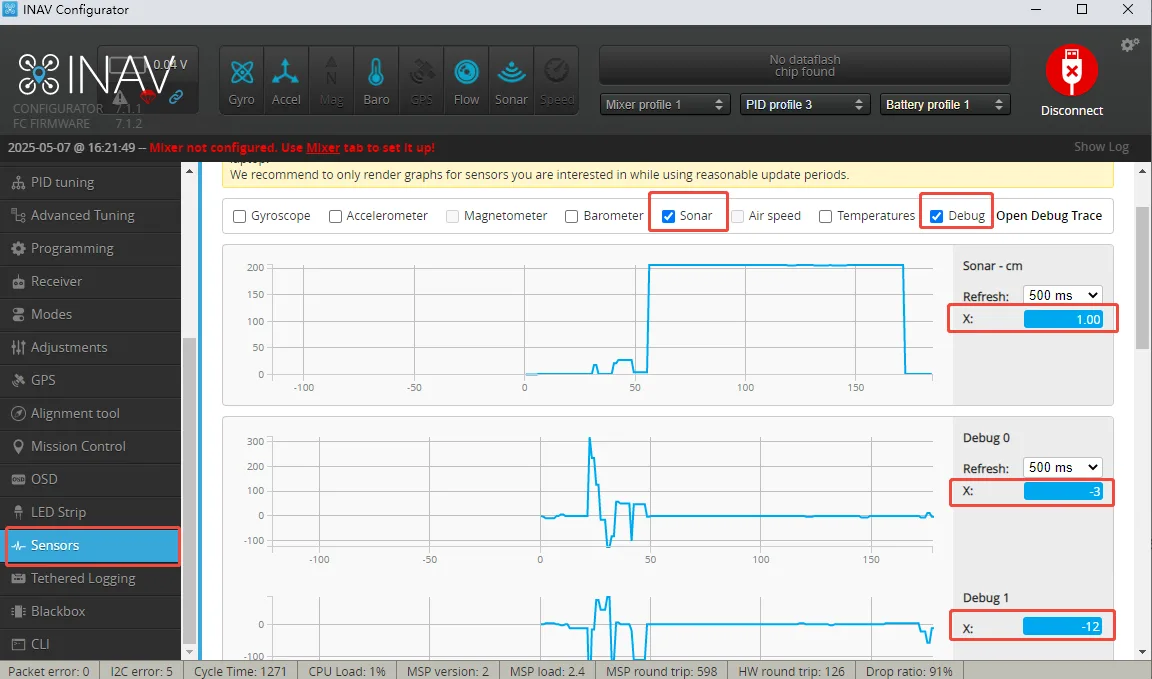

In the Sensors interface, check the Sonar option and the Debug option; If configured correctly, it can be seen that the waveform and the X value are changing.

Switch ToF to MSP mode.

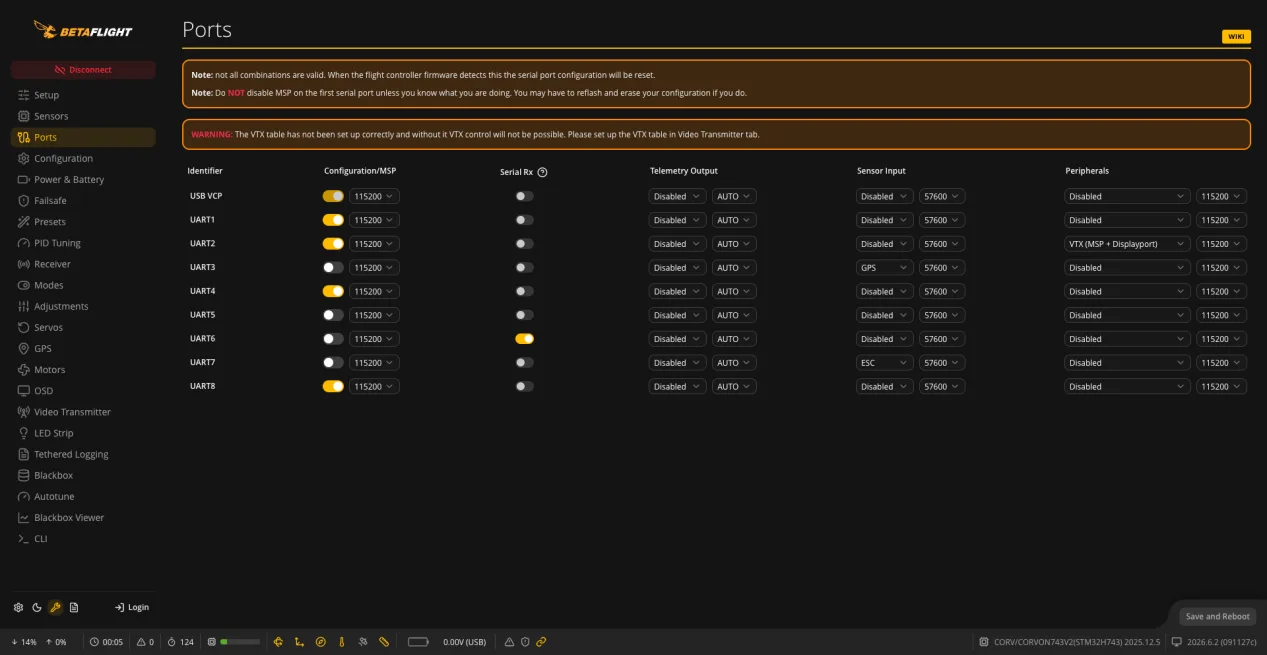

On the Ports page, enable MSP for UART4, then save and reboot.

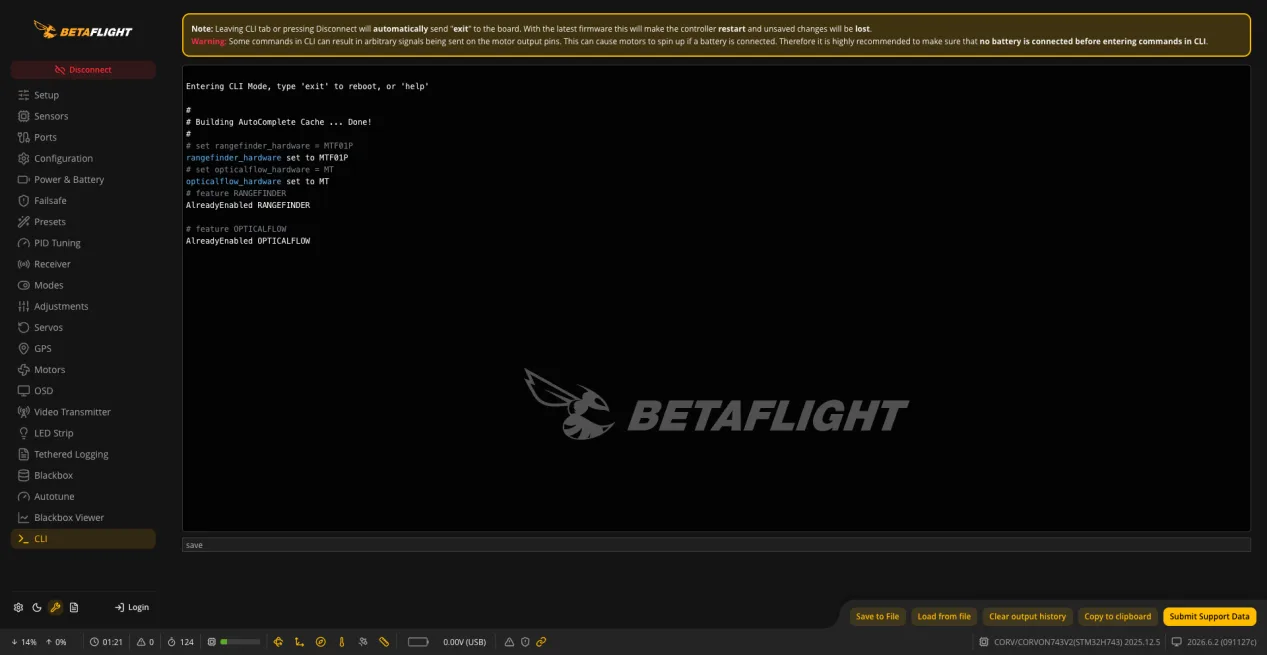

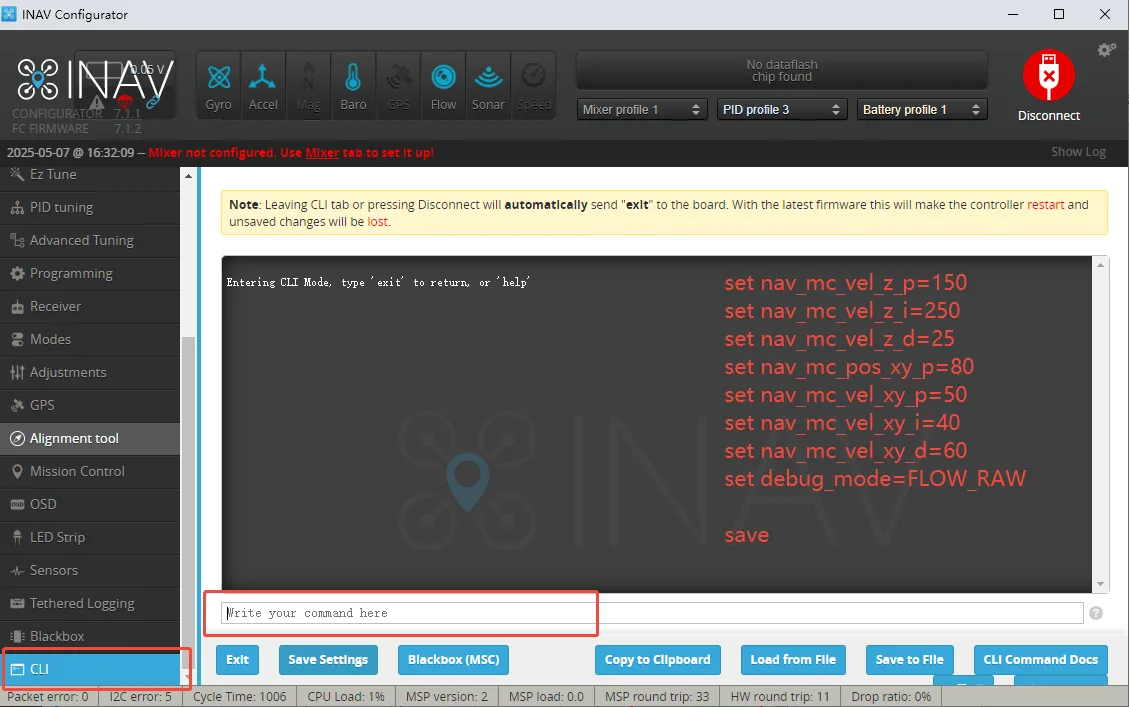

Enter the following commands in CLI, one line at a time, and save:

View rangefinder data:

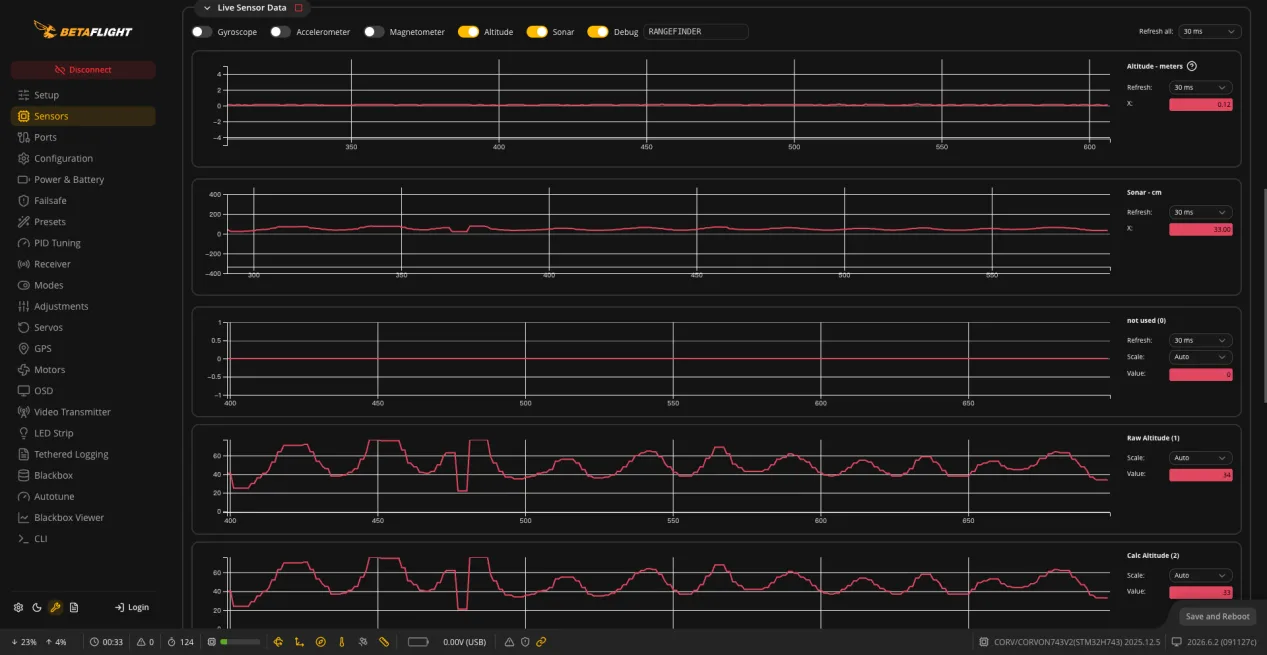

VIEW DATAOn the Sensors page, view Sonar - cm, Raw Altitude, and Calc Altitude.

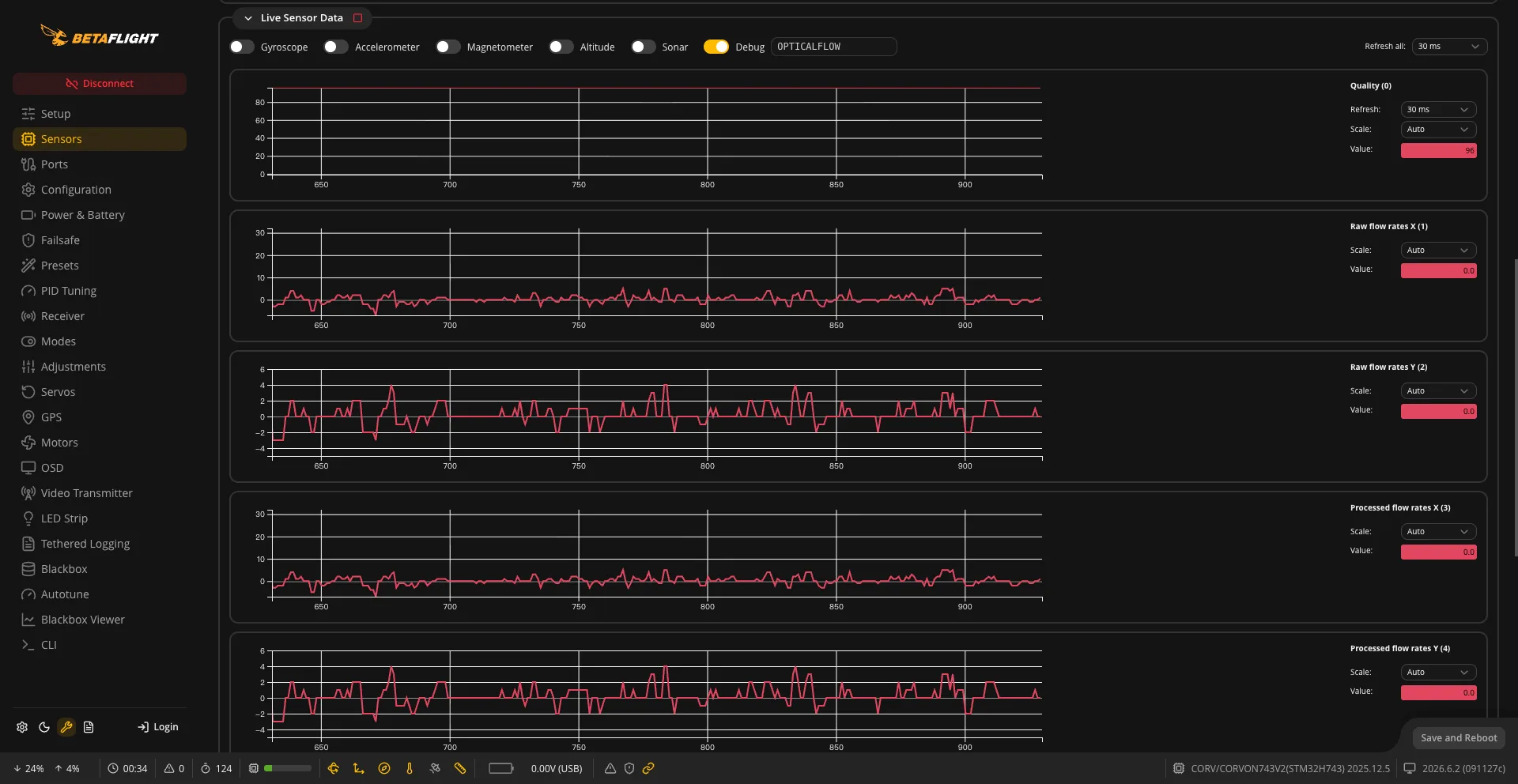

View optical flow data:

VIEW DATAOn the Sensors page, view Quality and Raw flow rates X/Y.
