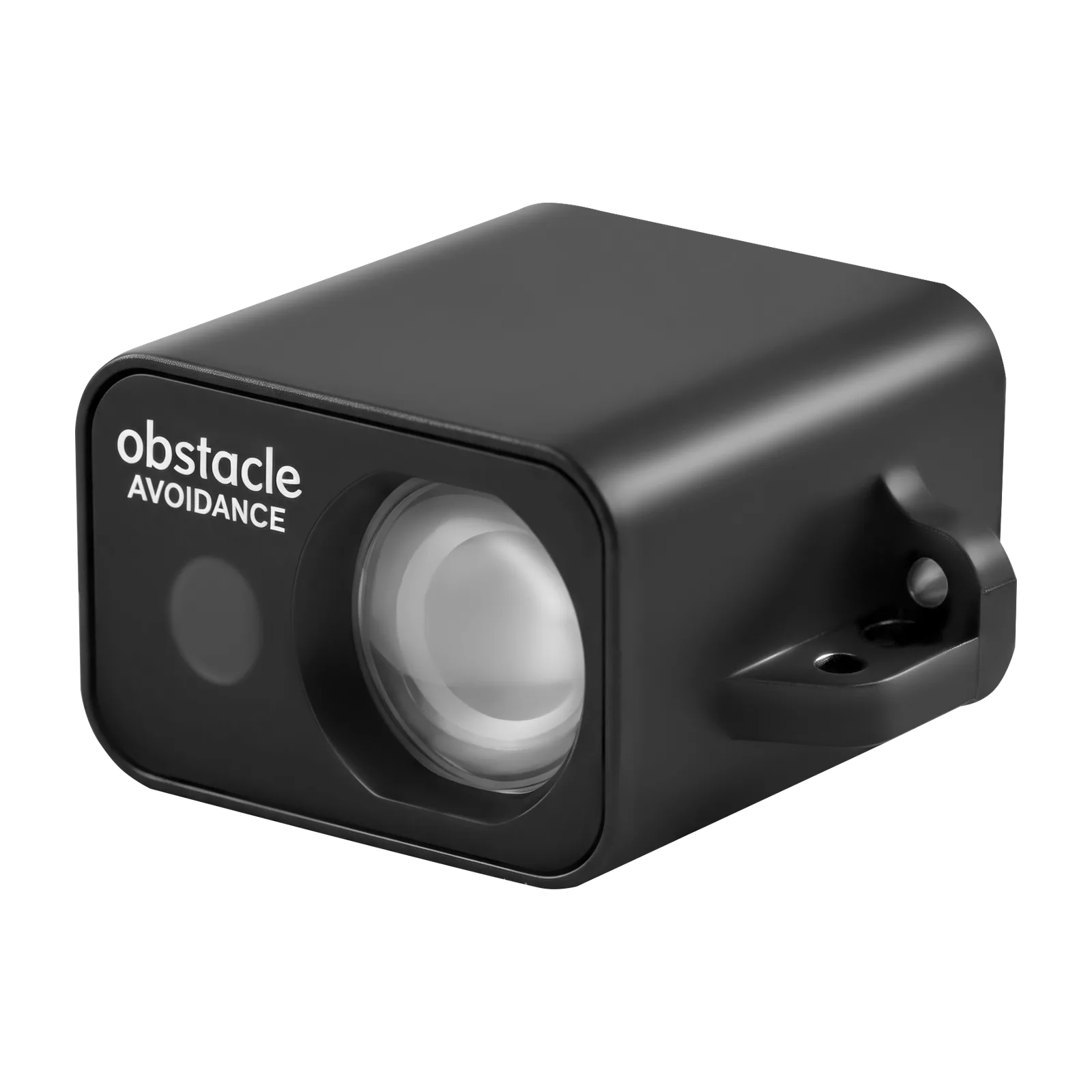

The CORVON CV50 is a long-range infrared ranging module built on the direct Time-of-Flight (dToF) principle. It measures up to 50 m with high accuracy, a 100 Hz measurement rate, a narrow <2° field of view, and a 905 nm light source. With a 5–10 cm dead zone and selectable UART or I²C output, it suits UAV altitude hold over varied terrain, long-range obstacle detection, and terrain mapping. Compatible with PX4, INAV and ArduPilot. The module measures 28.5 × 13.6 × 21.4 mm and weighs about 6.8 g.
| Model | CV50 |
|---|---|
| Type | Infrared Ranging Module (dToF) |
| Measuring Range | 50 m |
| Field of View (FOV) | < 2° |
| Measuring Accuracy | ±3 cm @ <2 m · ±2% @ ≥2 m |
| Measurement Frequency | 100 Hz |
| Light Source Wavelength | 905 nm ±5 nm |
| Measurement Dead Zone | 5–10 cm |
| Operating Voltage | 3.5–5.5 V |
| Current Consumption | ≤ 60 mA @ 5 V |
| Communication Interface | UART 115200 · I²C up to 400 K |
| Operating Temp. | 0°C – 60°C |
| Storage Temp. | −20°C – 70°C |
| Dimensions | 28.5 × 13.6 × 21.4 mm (±0.1 mm) |
| Weight | 6.8 g |
| Firmware Support | PX4 · INAV · ArduPilot |
| Ambient Light Immunity | 100 klux @ 20 m |

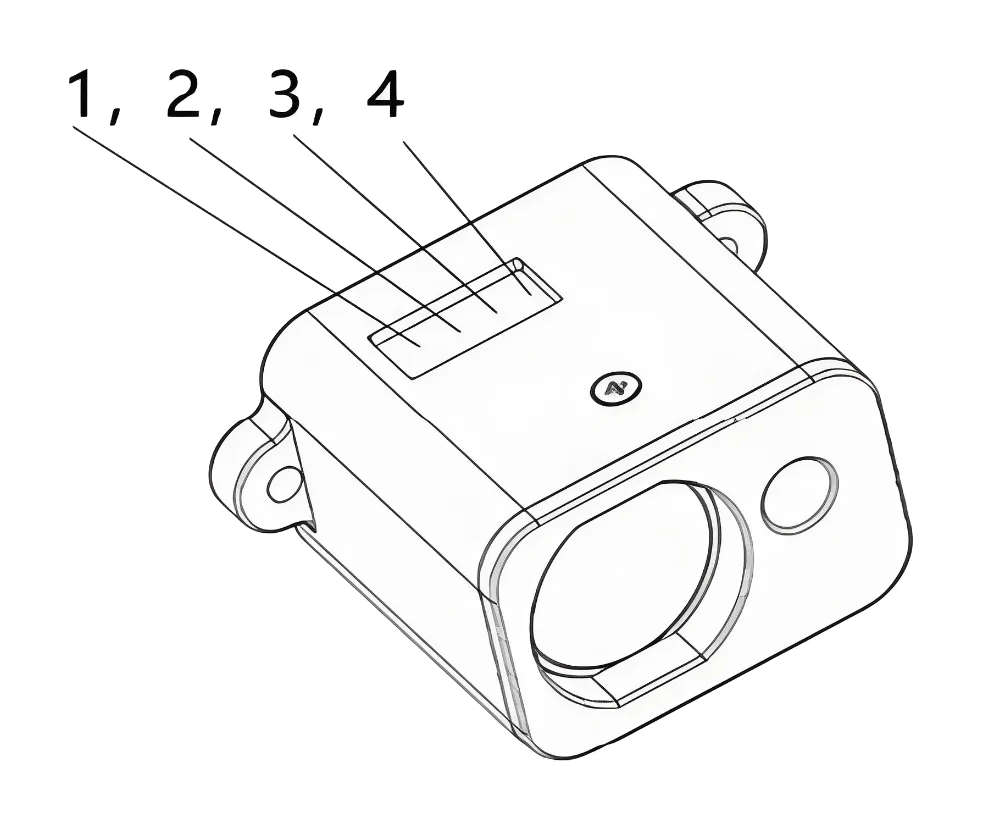

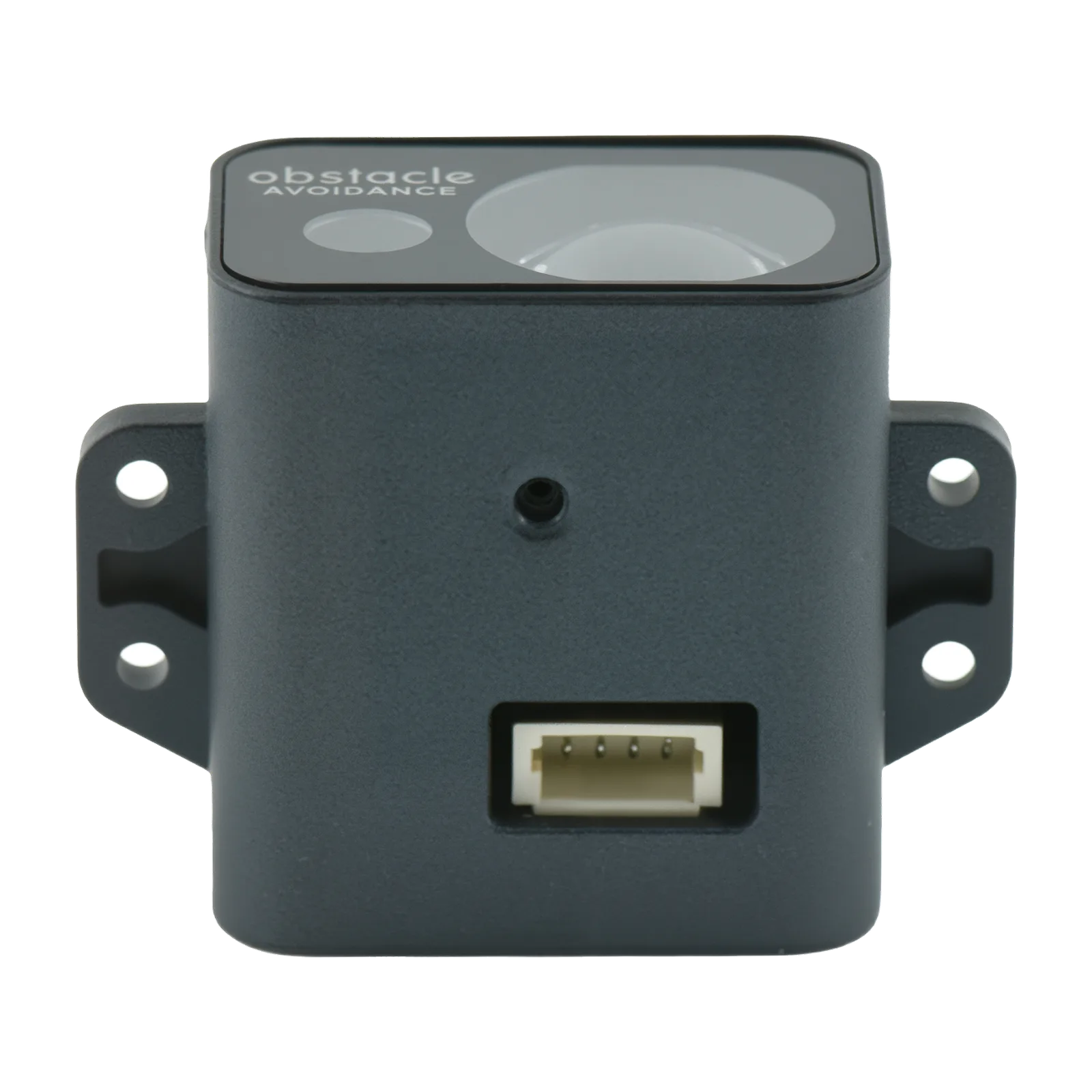

4-pin connector, UART / I²C selectable. For UART connect module TX to the flight-controller RX and module RX to the flight-controller TX (115200 bps).
| Pin | UART | I²C | Function |
|---|---|---|---|
| 1 | GND | GND | Ground |
| 2 | VCC | VCC | Power · +5 V |
| 3 | RX | SDA | UART receive / I²C data |
| 4 | TX | SCL | UART transmit / I²C clock |
UART Output Protocol
| S/N | Name | Content | Description |
|---|---|---|---|
| 1 | Header | 0xDF | |
| 2 | Device ID | 0x32 | |
| 3 | System ID | 0x00 | |
| 4 | Message ID | 0x40 | |
| 5 | Packet Sequence | 0x00~0xFF | |
| 6 | Payload Length | 0x04 | |
| 7 | Payload Content | TOF Distance Low Byte | TOF Distance (mm) |
| 8 | TOF Distance High Byte | ||
| 9 | TOF Signal Strength Low Byte | ||
| 10 | TOF Signal Strength High Byte | ||
| 11 | Checksum | 0xXX | Sum of all preceding bytes |
I2C Output Protocol(The I2C output protocol is proprietary and does not support open-source use.)
Device Address: 0x51 (7-bit address)
| S/N | Register Address | Content | Description |
|---|---|---|---|
| 1 | 0x00 | Device ID | 0x32 |
| 2 | 0x01 | TOF Distance Low Byte | TOF Distance (mm) |
| 3 | 0x02 | TOF Distance High Byte | |
| 4 | 0x03 | TOF Signal Strength Low Byte | |
| 5 | 0x04 | TOF Signal Strength High Byte |
I. PX4 Configuration
1. Open the tool and select Vehicle Configuration;
2. Set MAV_1_CONFIG to TELEM 2 and save;
3. Click “Tools”, then click “Reboot Vehicle”;
4. Set MAV_1_MODE to Normal and save;
5. Set SER_TEL2_BAUD to 115200 8N1 and save.
6. Set EKF2_RNG_CTRL to Enabled and save;
7. Set EKF2_HGT_REF to Range sensor and save;
8. After the configuration is completed, restart the flight controller. You should be able to see the DISTANCE_SENSOR message in the MAVLink Inspector page of QGC, as long as there is a value. Note that the messages displayed on the QGC are sent by the flight control. The message frequency is not the same as the data frequency of the sensor. This frequency is determined by the Settings of the flight control and the speed of the data link, and is mainly used for observation. The number of the message frequency is not important.
II. APM Configuration
1. In Mission Planner, set the corresponding serial port baud rate SERIAL4_BAUD to 115 (115200), set SERIAL4_OPTIONS to 0, and set the serial protocol value SERIAL4_PROTOCOL to 1 (Mavlink1). Click “Write Params” to save.
2. Set the RNGFND1_TYPE value to 10, click “Write Params” to save, then click “Refresh Params”;
3. Set the RNGFND1_MAX_CM value to 5000 and the RNGFND1_MIN_CM value to 5.
4. After configuration, you can view the values for rangefinder1 on the status page.
III. INAV Configuration
1. Open the Ports interface, enable the MSP function for the corresponding serial port (we are connected to UART4), save and restart.
2. In the Configuration interface, set the Rangefinder option to MSP, save the settings, and restart the device. If configured correctly, the Sonar indicator light on the main interface will illuminate.
3. Check the Sonar option in the Sensors interface; if configured correctly, you should see the waveform and X-values changing.
