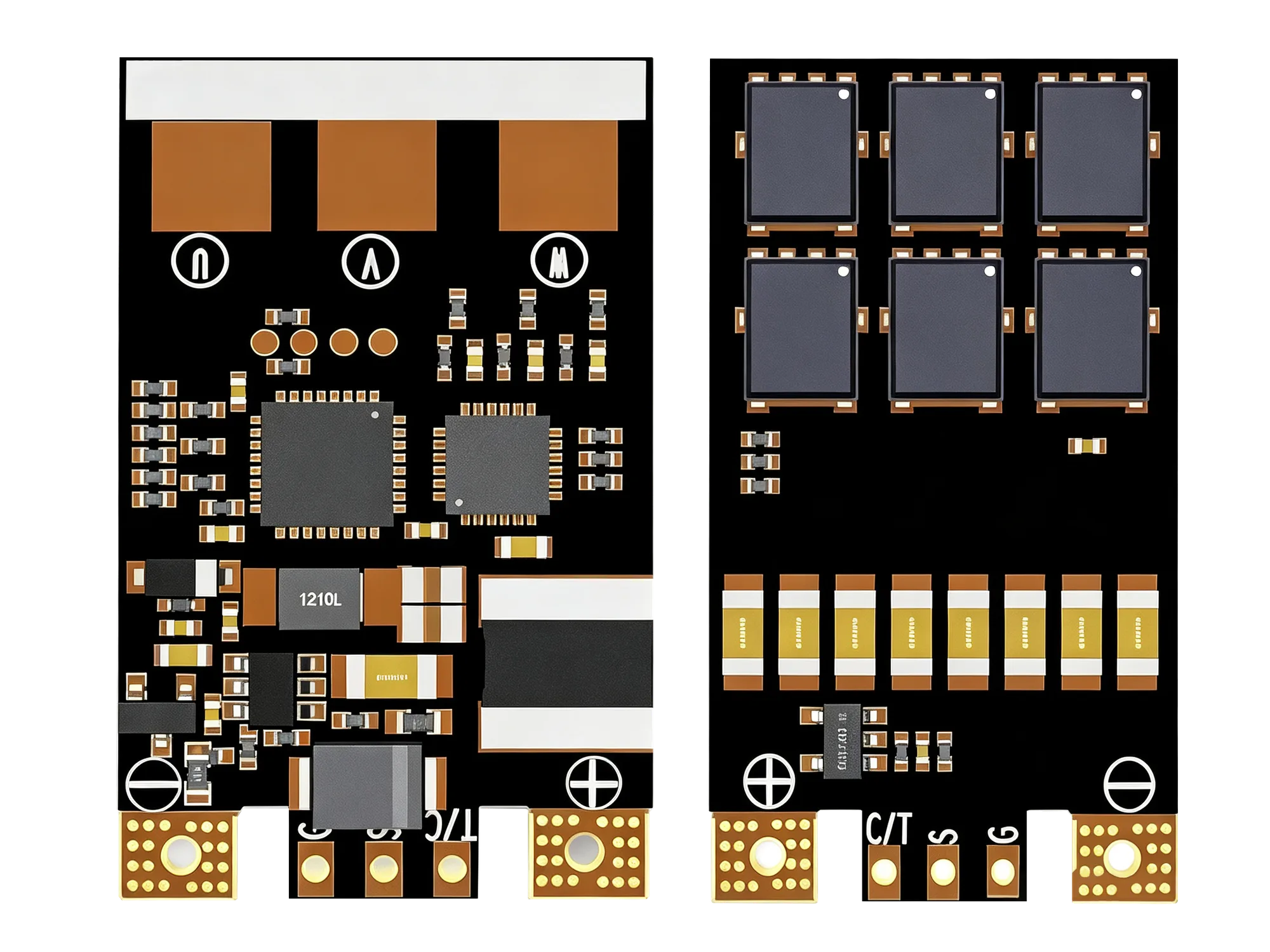

The CORVON 50A Single ESC · 32-bit is a single brushless electronic speed controller with a 32-bit Cortex-core MCU and PWM control input. It supports 50 A continuous current and 80 A burst current. The recommended battery is 4S–6S LiPo / Li-ion. Hardware synchronous rectification, regenerative braking and stall protection are supported. There is no BEC output.
| Product Name | Brushless Electronic Speed Controller |
|---|---|
| Model | CORVON 50A Single ESC · 32-bit |
| Type | Single Brushless ESC |
| MCU | 32-bit Cortex-core |
| Drive Signal | PWM |
| Rated Input Voltage | 13 V – 25.2 V |
| Input Voltage Limits | 5 V – 28 V |
| Recommended Battery | 4S – 6S LiPo / Li-ion |
| Continuous Current | 50 A |
| Burst Current | 80 A |
| BEC Output | None |
| Stall Protection | Supported |
| Cooling Method | Natural Convection |
| Protection Level | None |
| Operating Temp. | −10°C – 50°C |
| Operating Humidity | 10% – 95% RH, non-condensing |
| Storage Temp. Limits | −40°C – 70°C (requires vacuum sealing) |
| Storage Humidity | 10% – 90% RH, non-condensing |

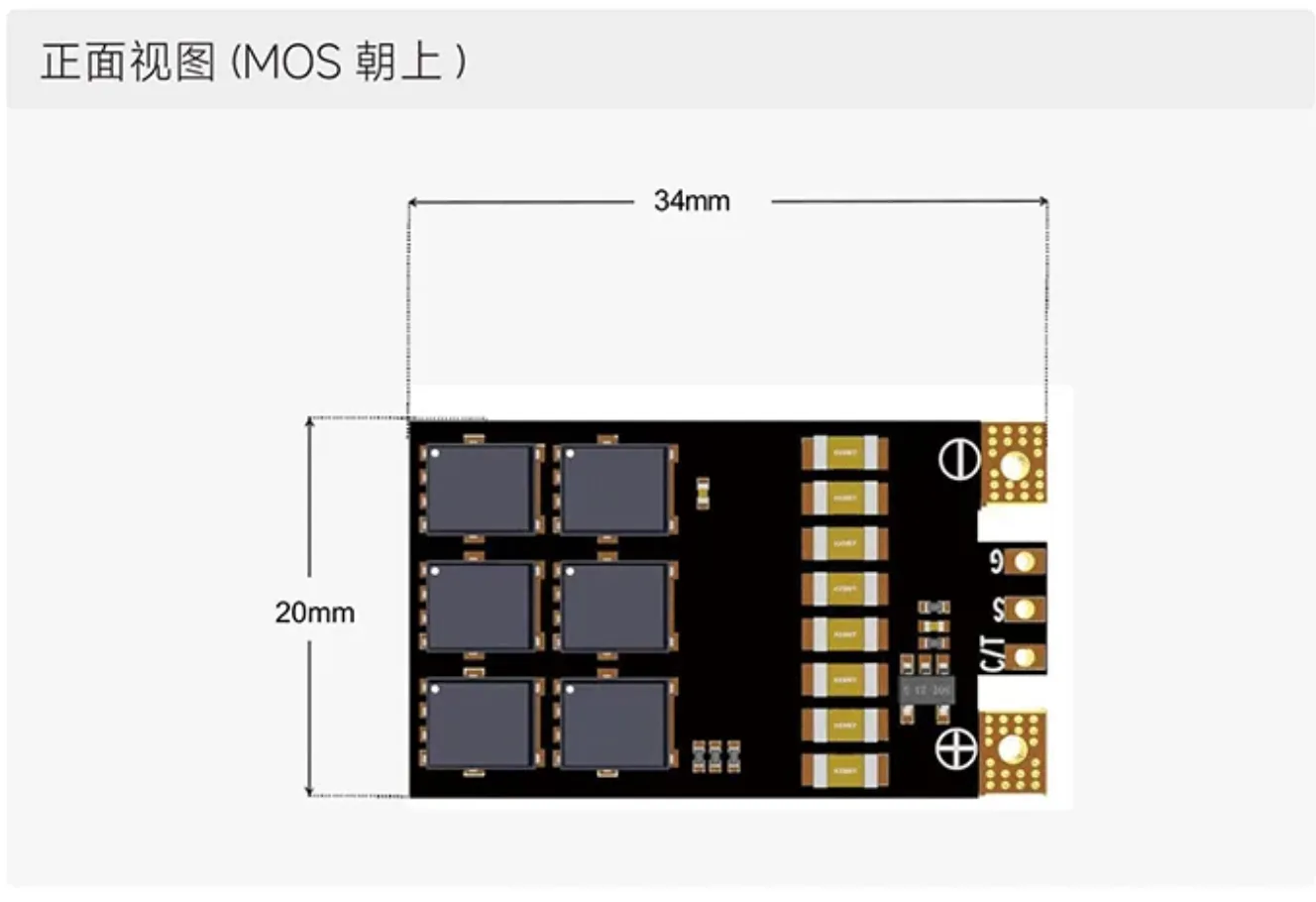

| Dimensions | 34 × 20 × 5.8 mm |
| Board Weight | Approx. 6.8 g |
| Hardware Version | 1 |
| Firmware | AM32 |

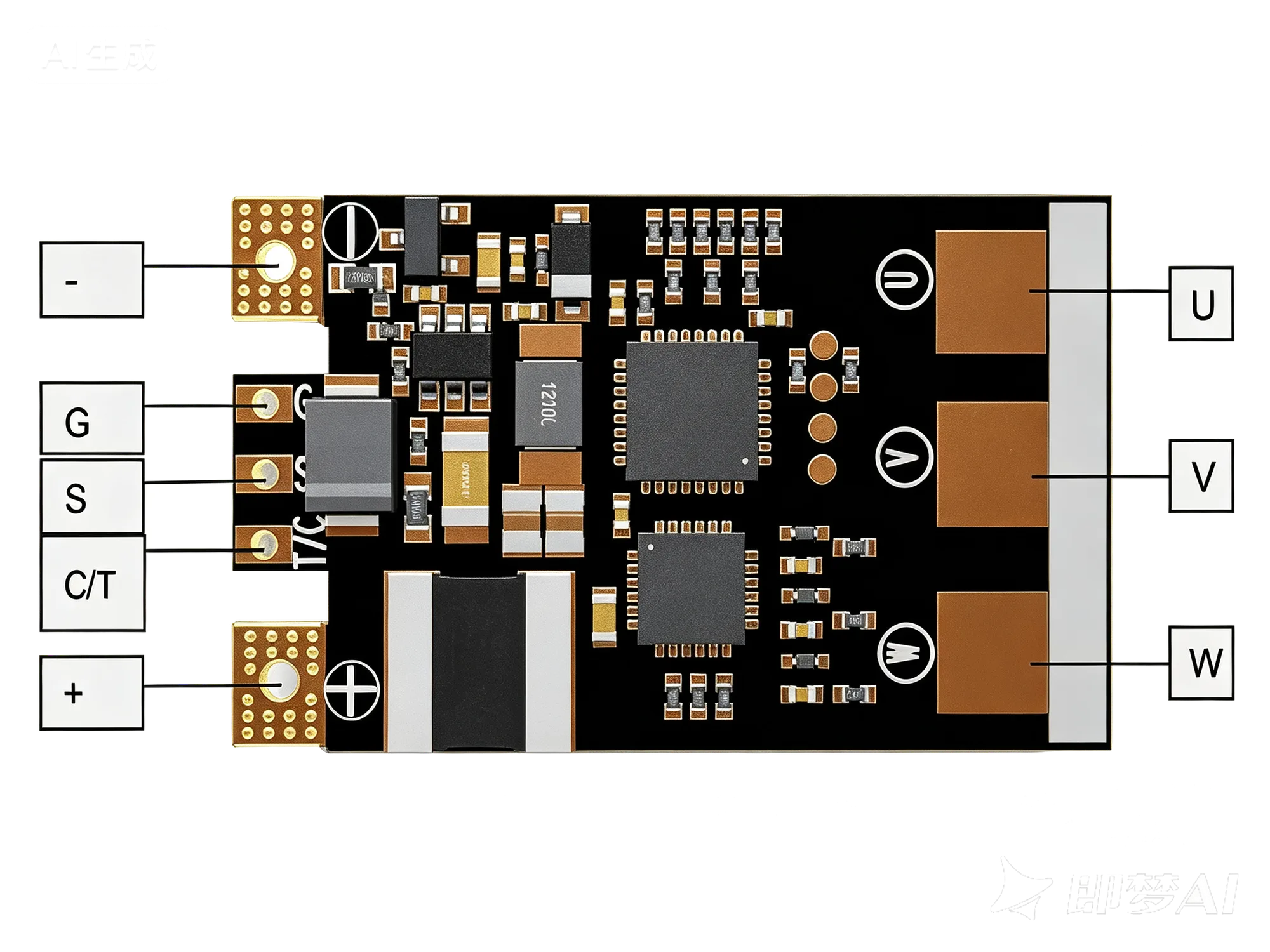

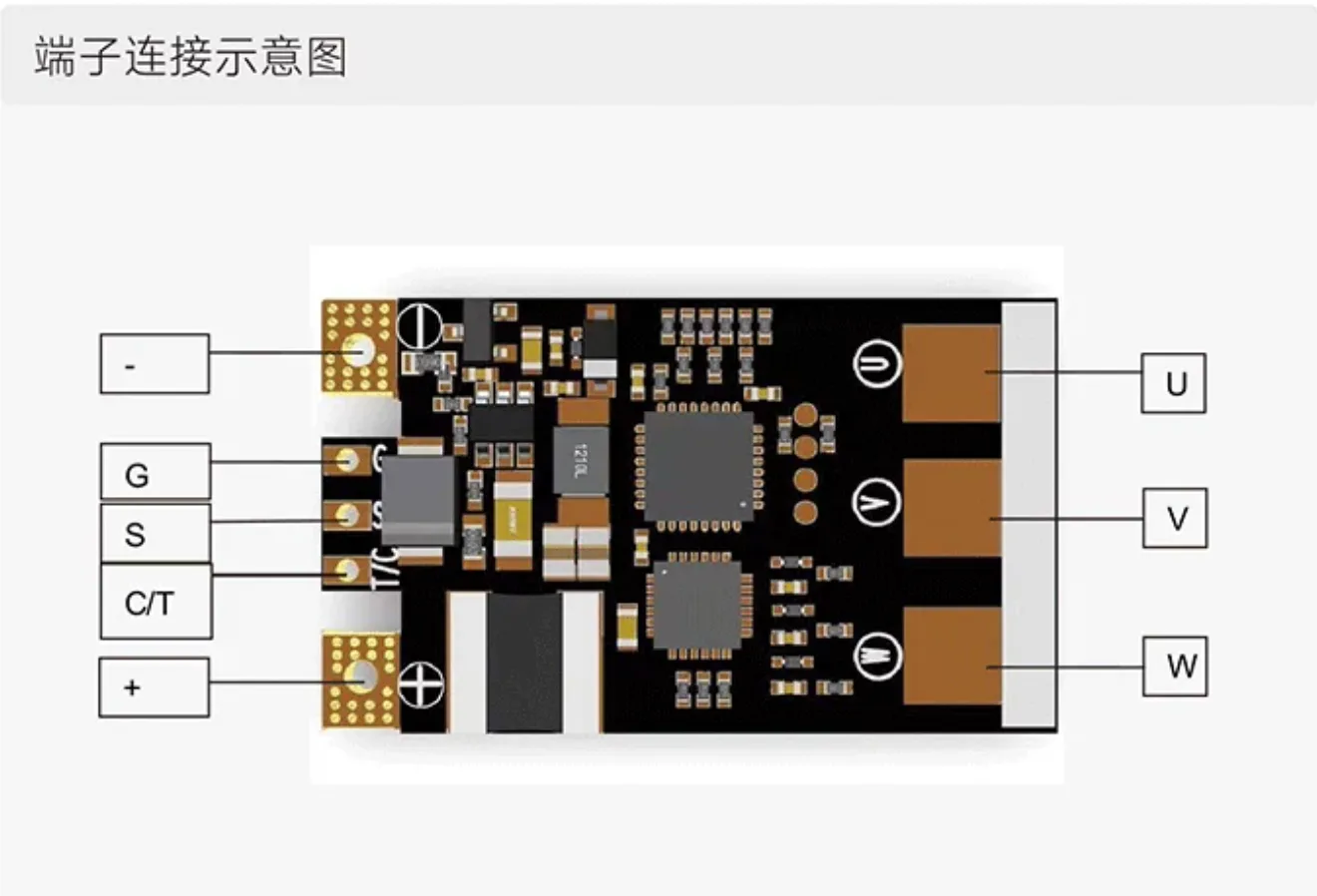

| + | Battery positive |
|---|---|
| − | Battery negative |
| U / V / W | Motor phase outputs |
| S | PWM throttle control signal |
| G | Signal ground; common ground with the flight controller |
| C/T | Current / serial output (optional) |
Use the recommended battery and rated input range. Input voltage limits are not recommended operating voltages. Confirm the C/T function and signal levels for the actual hardware before connecting it.
| ESC | 1× CORVON 50A Single ESC · 32-bit |
|---|---|
| Connector | 1× XT60 male connector |
| Power Wires | 1× set of 12AWG power wires (red and black) |
| Capacitor | 1× 470 µF high-frequency, low-impedance capacitor |
