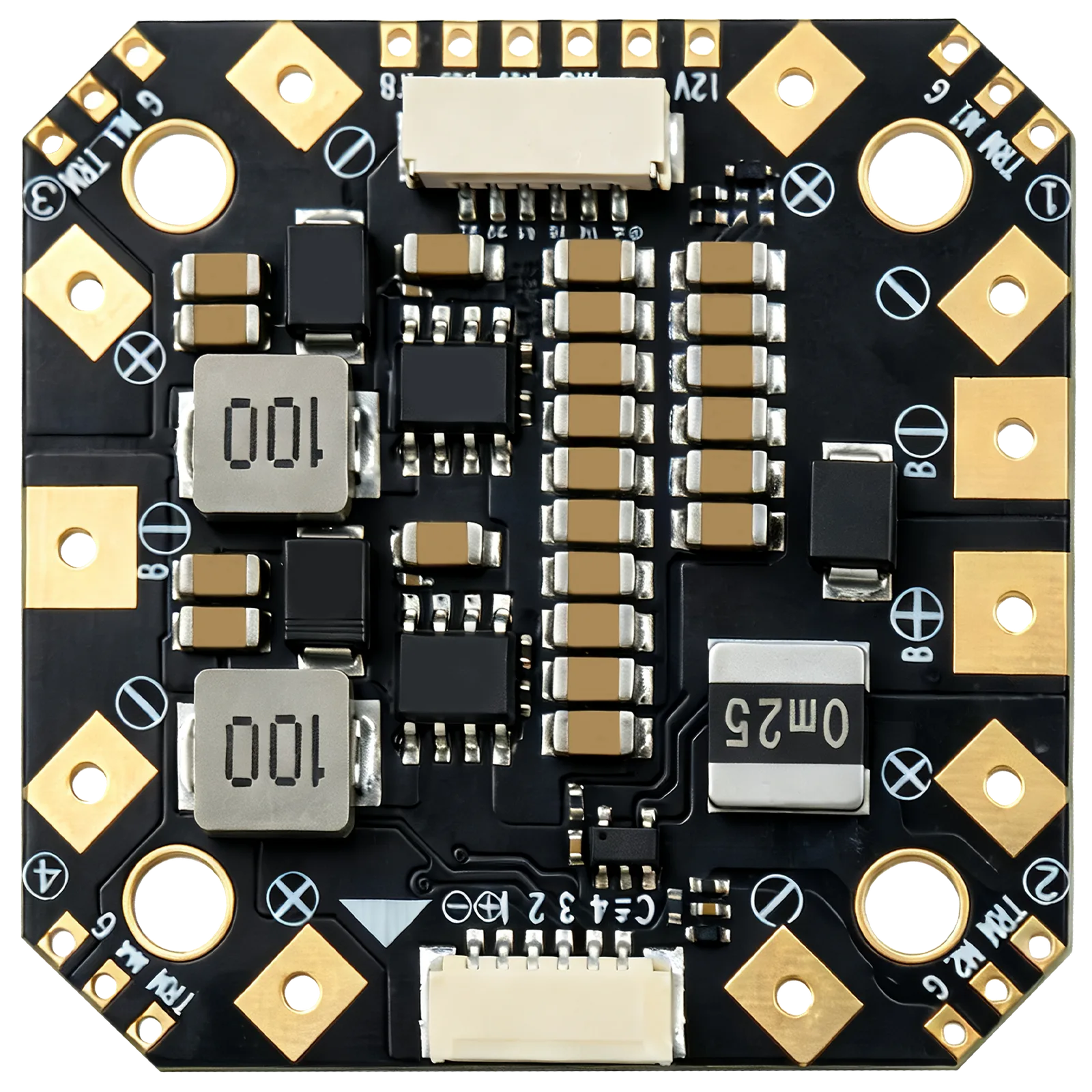

The CORVON ESC-PWR is a new-generation power adaptation and conversion board for brushless electronic speed controllers. It acts as an efficient hub between the battery and up to four ESCs, delivering stable, reliable power to the brushless motors. Supporting 3S–8S batteries, it provides efficient power distribution across the four channels and breaks out four motor signals (M1–M4), while supplying regulated 5 V · 3 A and 12 V · 2 A rails for peripherals. An integrated current-meter path with 18:1 power detection, together with a battery-voltage tap, feeds clean telemetry back to the flight controller. Wide 5–40 V input range and natural-convection cooling, with a standard 30.5 × 30.5 mm mounting pattern in a compact 44 × 44 mm footprint at roughly 14 g.

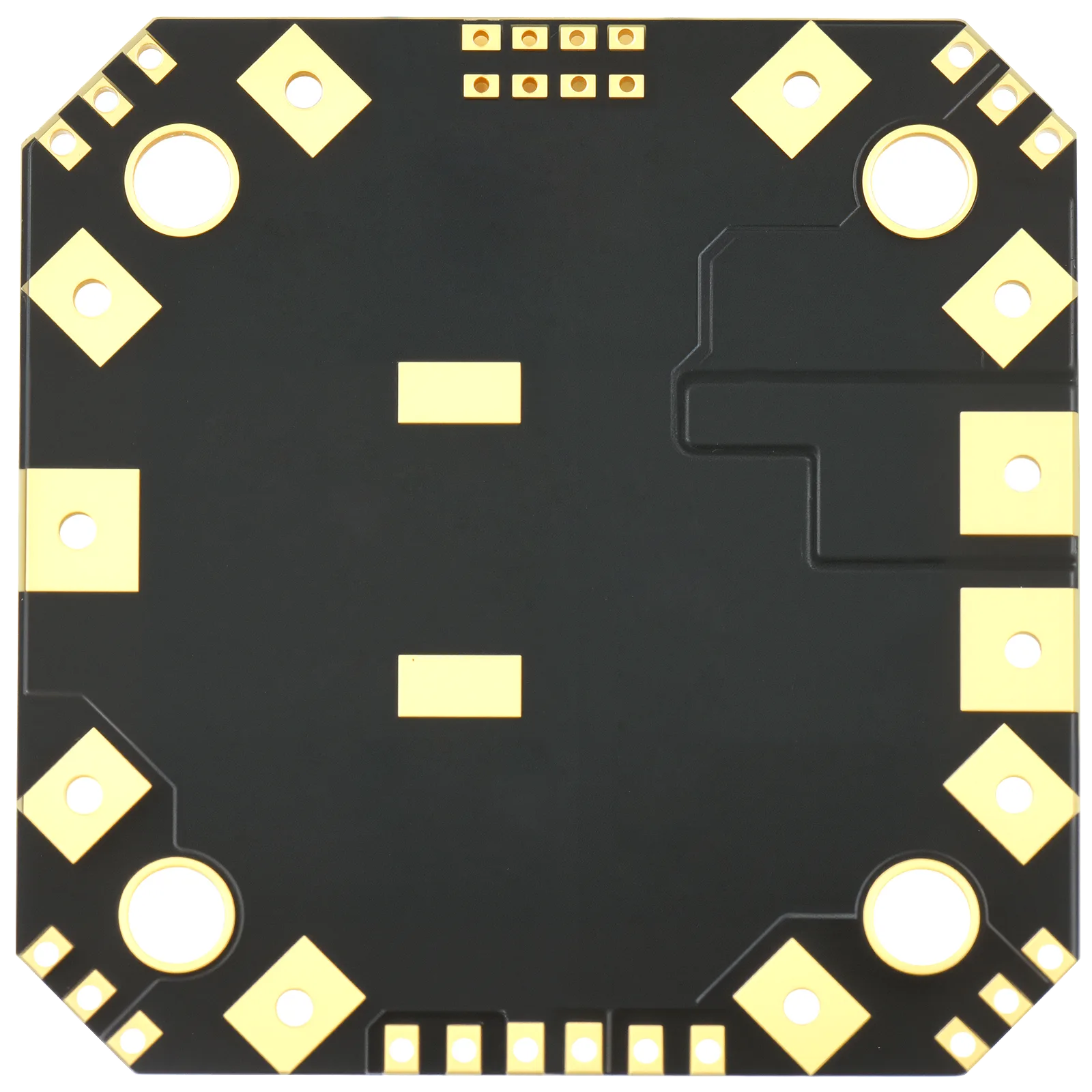

| Product Name | ESC Power Adapter Board |
|---|---|
| Model | 4IN1-ESC-POWER |
| Rated Input Voltage | 3S–8S · 13.2–35.4 V |
| Max Input Voltage | 5–40 V |
| Recommended Operating Voltage | 3S–8S |
| Continuous Current | 3A @ 5V · 2A @ 12V output |
| Current Sensor | 18:1 ratio |
| Cooling | Natural |
| Max External Dimensions | 44 × 44 × 6 mm |
| Mounting Pattern | 30.5 × 30.5 mm · M4 |
| Weight | 14 g |
| Operating Temp. | −10°C – 50°C |
| Hardware Version | 1 |
| Pin | Name | Function |
|---|---|---|
| C | Current Signal ADC | Current sampling conversion |
| TRM | Single-Wire Serial Port | Single-wire bidirectional comms, real-time data transmission |
| 4 | Signal | Power gate control signal #4 |
| 3 | Signal | Power gate control signal #3 |
| 2 | Signal | Power gate control signal #2 |
| 1 | Signal | Power gate control signal #1 |
| + | Battery Positive | Battery positive |
| − | Battery Negative | Battery negative |
| M1 | Signal | Power gate control signal #1 |
| M2 | Signal | Power gate control signal #2 |
| M3 | Signal | Power gate control signal #3 |
| M4 | Signal | Power gate control signal #4 |
| G | Power Negative | Power negative |
| GND | Power Negative | Power negative |
| 5V | Power Output | 5 V DC power output |
| 12V | Power Output | 12 V DC power output |
| BV | Battery Voltage | Battery voltage detection (18:1 divider) |
| BI | Battery Current Sense | Battery current-sense feedback |
Thank you for choosing a CORVON product. Please read this disclaimer carefully — by using this product, you acknowledge and agree to the following: brushless power systems can be dangerous, and improper use may result in personal injury or equipment damage. Follow the installation and operation instructions carefully. Because we cannot control how this product is used, installed, or maintained, we accept no liability for any loss or damage arising from its use. Any unauthorized modifications are at your own risk.
Read this manual to understand all power configuration before powering the system, and observe correct polarity on every power connection — never exceed the rated input voltage. Installation requires soldering and wiring. Make sure all wires are properly insulated before connection to avoid short circuits. Use a soldering iron with adequate power to ensure solid joints — poor connections can cause loss of control or damage to your equipment.
